Black Box LHC040A-R3 Wireless Switch

The Black Box LHC040A-R3 Wireless Switch has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

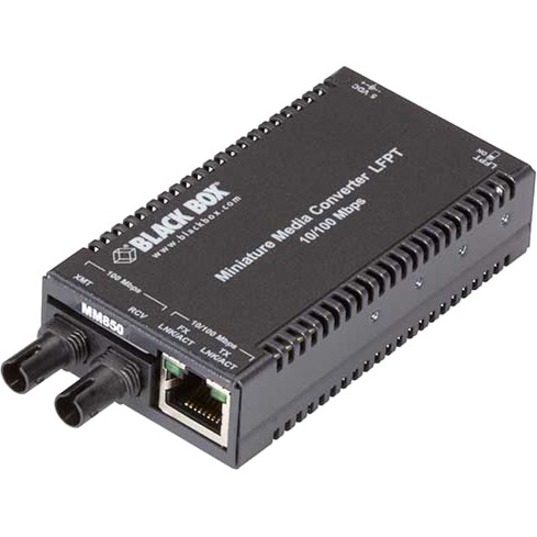

Black Box  -  Black Box Multipower Miniature LHC040A-R3 Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x ST Ports - DuplexST Port - Multi-mode - Fast Ethernet - 10/100Base-T, 100Base-SX - Rail-mountable, Desktop

  • Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs
  • Compact size; measures just 0.8"H x 1.8"W x 3.4"D.
  • Powered by a universal AC power supply or the optional rackmountable PowerTray.
  • Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
  • Converters may also be powered from a USB port using the LHC021A USB power cable.
Read More
Need a different version? See all Black Box Parts Products
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Black Box LHC040A-R3 Wireless Switch
Black Box LHC040A-R3 Wireless Switch
Black Box LHC040A-R3 Wireless Switch Black Box LHC040A-R3 Wireless Switch
Interfaces/Ports
Total Number of Ports:
2
Network (RJ-45):
Yes
DVI:
No
USB:
No
Management Port:
No
Number of Network (RJ-45) Ports:
1
Number of ST Ports:
1
ST Port Type:
Duplex
Media & Performance
Media Type Supported:
  • Optical Fiber
  • Twisted Pair
Fiber Mode Supported:
Multi-mode
Fiber Optic Wavelength:
850 nm
Maximum Distance Supported:
984.25 ft
Fiber Optic Cable Standard:
  • 50/125 µm
  • 62.5/125 µm
Network & Communication
Ethernet Technology:
Fast Ethernet
Network Technology:
  • 10/100Base-T
  • 100Base-SX
Power Description
Power Source:
Power Supply
Physical Characteristics
Form Factor:
  • Rail-mountable
  • Desktop
Height:
0.8"
Width:
1.8"
Depth:
3.4"
Miscellaneous
Package Contents:
  • Multipower Miniature LHC040A-R3 Transceiver/Media Converter
  • Power Supply
Additional Information:

The power supply included with this converter is not compatible with the earlier version of this product.Product works with:

  • USB Power Adapter Cable (LHC021A)
  • PowerTray (LHC018A-AC-R2)
  • GigaBase® 350 CAT5e Patch Cable, 4-Pair, Straight-Pinned, PVC (EVNSL85, etc.)
  • SFP, 155-Mbps Fiber with Extended Diagnostics, 850-nm Multimode, LC, 2 km (LFP401)
  • SFP, 1310-nm Multimode, 2 km, LC (LFP402)
  • SFP, 1310-nm Single-Mode, Plus, 30 km, LC (LFP403)
  • SFP, 60 km, LC (LFP404)
    • The included power supply doesn't work with previous versions of this model (LHC301A). Questions? Contact our FREE Tech Support.

    Environmentally Friendly:
    Yes
    Environmental Certification:
    WEEE
    Country of Origin:
    United States
    TAA Compliant:
    Yes
    Warranty
    Limited Warranty:
    6 Year
    Item Numbers
    GTIN: 0088064186588, 0818287202051, 0818289529767, 0822088125631
    UPC: 088064186588, 818287202051, 818289529767, 822088125631
    EAN: 0088064186588, 0818287202051, 0818289529767, 0822088125631
    UNSPSC: 43201553
