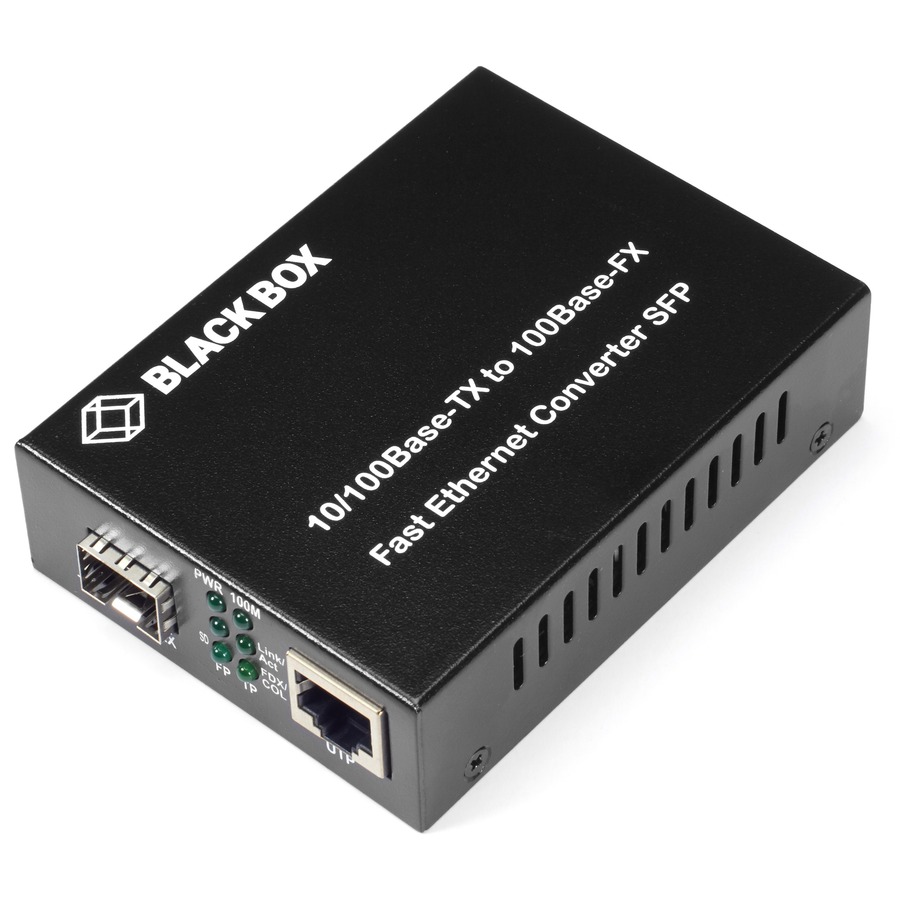

Black Box LHC210A Wireless Switch

Black Box  -  Black Box Transceiver/Media Converter - 1 x Network (RJ-45) - Single-mode, Multi-mode - Fast Ethernet - 10/100Base-TX, 100Base-FX - 1 x Expansion Slots - SFP - 1 x SFP Slots - Standalone
  • Convert copper-based network via fiber up to a maximum distance of 60 km through the use of SFP's
  • Fully compliant with IEEE802.3, IEEE802.3U, 10/100BASE-TX, 100BASE-FX
  • Use as a standalone unit or with the available chassis (LHGC-RACK).
  • Know operation status through LEDs on front panel
  • One RJ45 port and one SFP slot
  • Flow Control: IEEE802.3x flow control for full duplex mode.
  • Link fault pass-through functionality
Read More

Need a different version? See all Black Box Parts Products

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$76.25
Black Box LHC210A Wireless Switch
Black Box LHC210A Wireless Switch
Black Box LHC210A Wireless Switch Black Box LHC210A Wireless Switch
Larger View
Interfaces/Ports
Total Number of Ports:
1
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Fiber Mode Supported:
  • Single-mode
  • Multi-mode
Maximum Distance Supported:
37.28 Mile
Fiber Optic Cable Standard:
  • 50/125 µm
  • 62.5/125 µm
  • 8.3/125 µm
  • 9/125 µm
  • 10/125 µm
I/O Expansions
Number of Total Expansion Slots:
1
Expansion Slot Type:
SFP
Number of SFP Slots:
1
Network & Communication
Ethernet Technology:
Fast Ethernet
Network Technology:
  • 10/100Base-TX
  • 100Base-FX
Power Description
Power Source:
AC Adapter
Plug/Connector Type:
Barrel
Frequency:
  • 50 Hz
  • 60 Hz
Physical Characteristics
Form Factor:
  • Standalone
  • Rack-mountable
Height:
1"
Width:
2.7"
Depth:
3.7"
Weight (Approximate):
11.20 oz
Miscellaneous
Package Contents:
  • Pure Networking Fast Ethernet (100-Mbps) Media Converter
  • 5-VDC Power Adapter
Additional Information:

Can be used as a standalone unit or with the available chassis (LHGC-RACK).

Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0822088130949, 0995478823803
UPC: 822088130949, 995478823803
EAN: 0822088130949, 0995478823803
UNSPSC: 43201553
