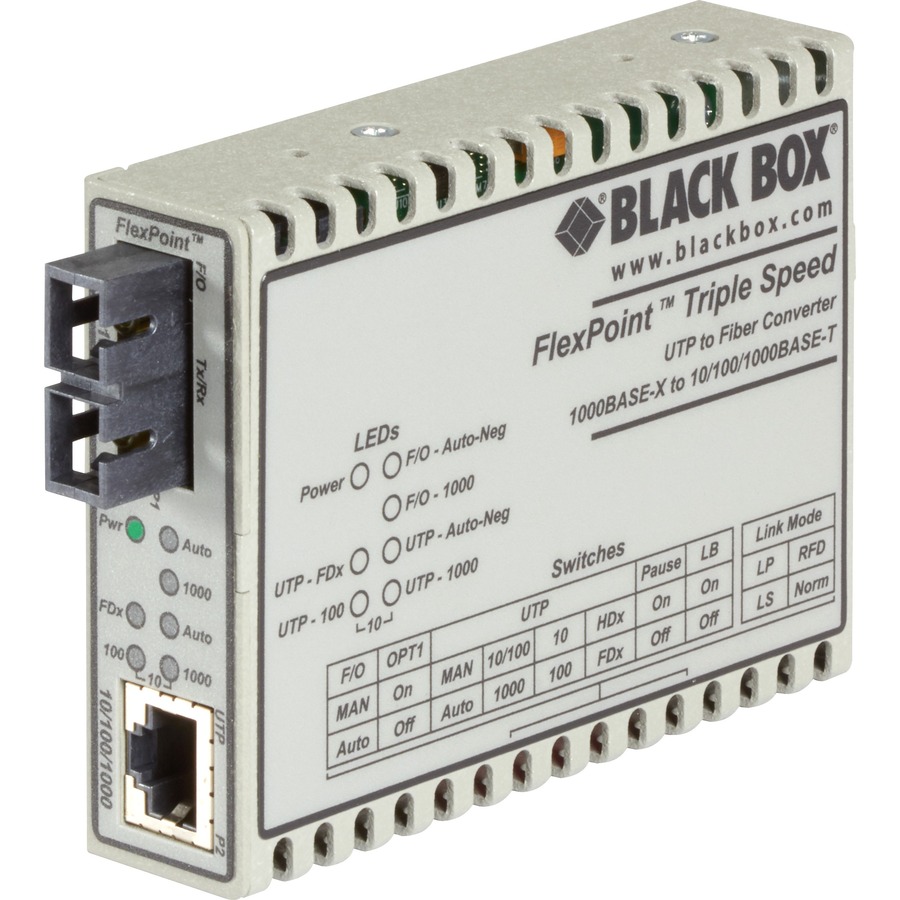

Black Box LMC1017A-MMSC Wireless Switch

Black Box  -  Black Box FlexPoint LMC1017A-MMSC Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - 10/100/1000Base-T, 1000Base-SX - Rail-mountable, Rack-mountable, Wall Mountable
  • Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs
  • Compact size
  • Powered by an AC power supply or the optional rack-mountable chassis.
  • Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
  • DIP switches enable you to configure port settings.
  • Supports jumbo frames up to 10,240 bytes.
Read More

Need a different version? See all Black Box Parts Products

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$980.12
Black Box LMC1017A-MMSC Wireless Switch
Black Box LMC1017A-MMSC Wireless Switch
Black Box LMC1017A-MMSC Wireless Switch Black Box LMC1017A-MMSC Wireless Switch
Interfaces/Ports
Total Number of Ports:
2
Network (RJ-45):
Yes
DVI:
No
USB:
No
Parallel Port:
No
Digital Audio:
No
Digital Audio/Video:
No
Management Port:
No
Number of Network (RJ-45) Ports:
1
Number of SC Ports:
1
Media & Performance
Media Type Supported:
  • Optical Fiber
  • Twisted Pair
Fiber Mode Supported:
Multi-mode
Maximum Distance Supported:
1804.46 ft
Network & Communication
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 1000Base-SX
Physical Characteristics
Form Factor:
  • Rail-mountable
  • Rack-mountable
  • Wall Mountable
Height:
1"
Width:
3"
Depth:
4"
Weight (Approximate):
6.40 oz
Miscellaneous
Compatibility:
  • Black Box FlexPoint 14-Slot Power Chassis
  • Black Box FlexPoint 5-Position Rackmount Kit
Certifications & Standards:
  • CE
  • TAA Compliant
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
United States
TAA Compliant:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0013269155558, 0641676607416, 0822088108801
UPC: 013269155558, 641676607416, 822088108801
EAN: 0013269155558, 0641676607416, 0822088108801
UNSPSC: 43201553
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Black Box LMC1017A-MMSC Wireless Switch is also known as BLB-LMC1017AMMSC
