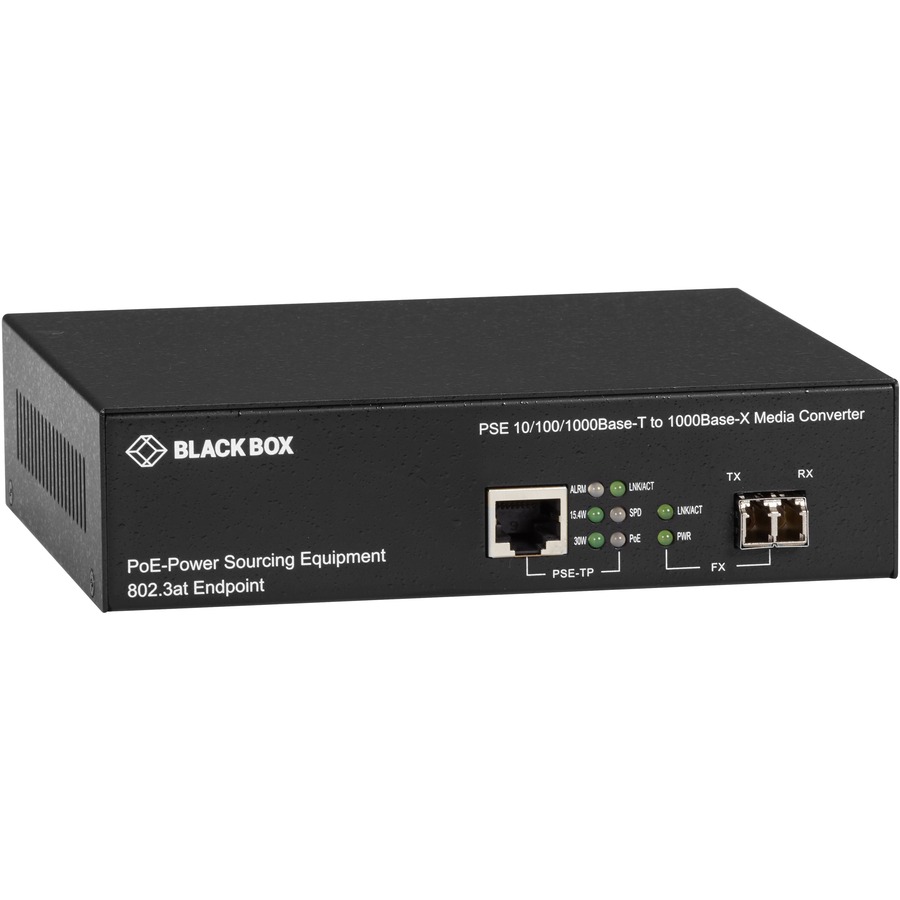

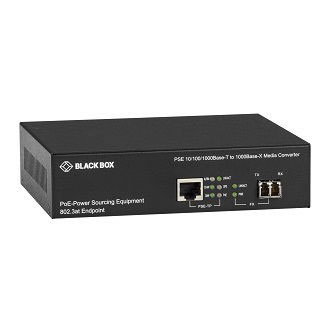

Black Box LPS500A-MM-LC-R3 Power Device

Black Box - Power Systems & Supplies, Black-Box, Gigabit Ethernet, PoE Media Converter, Copper 1000MB MM .3KM LC

Now supports up to 30 W, 802.3at
Compliant to EN62368
A low-cost, economical solution for powering PoE devices CATx
Powered device (PD) signature sending detects when a PoE device is connected.
Protects against damage caused by overcurrent events and offers undercurrent detection.
Link fault passthrough monitors both copper and fiber receive ports for loss of signal.
Far-end fault detection prevents the loss of valuable data from it being sent over an invalid link.

Need a different version? See all Black Box Parts Products

Chat Now for Qty Discount

Add to Quote

$428.88

In Stock

Detailed Specs

Interfaces/Ports

Total Number of Ports:

Network (RJ-45):

Yes

Number of PoE (RJ-45) Ports:

PoE Port Type:

PSE

Number of LC Ports:

LC Port Type:

Duplex

Media & Performance

Media Type Supported:

Twisted Pair
Optical Fiber

Fiber Mode Supported:

Multi-mode

Fiber Optic Wavelength:

850 nm

Maximum Distance Supported:

1804.46 ft

Network & Communication

Ethernet Technology:

Gigabit Ethernet

Network Technology:

10/100/1000Base-T
1000Base-SX

Power Description

Power Source:

Power Consumption:

65 W

Frequency:

50 Hz
60 Hz

Physical Characteristics

Form Factor:

Wall Mountable

Height:

1.6"

Width:

6.2"

Depth:

5.2"

Weight (Approximate):

1.30 lb

Miscellaneous

Application/Usage:

Network

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Country of Origin:

Taiwan

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0822088150589

UPC: 822088150589

EAN: 0822088150589

UNSPSC: 43201553
