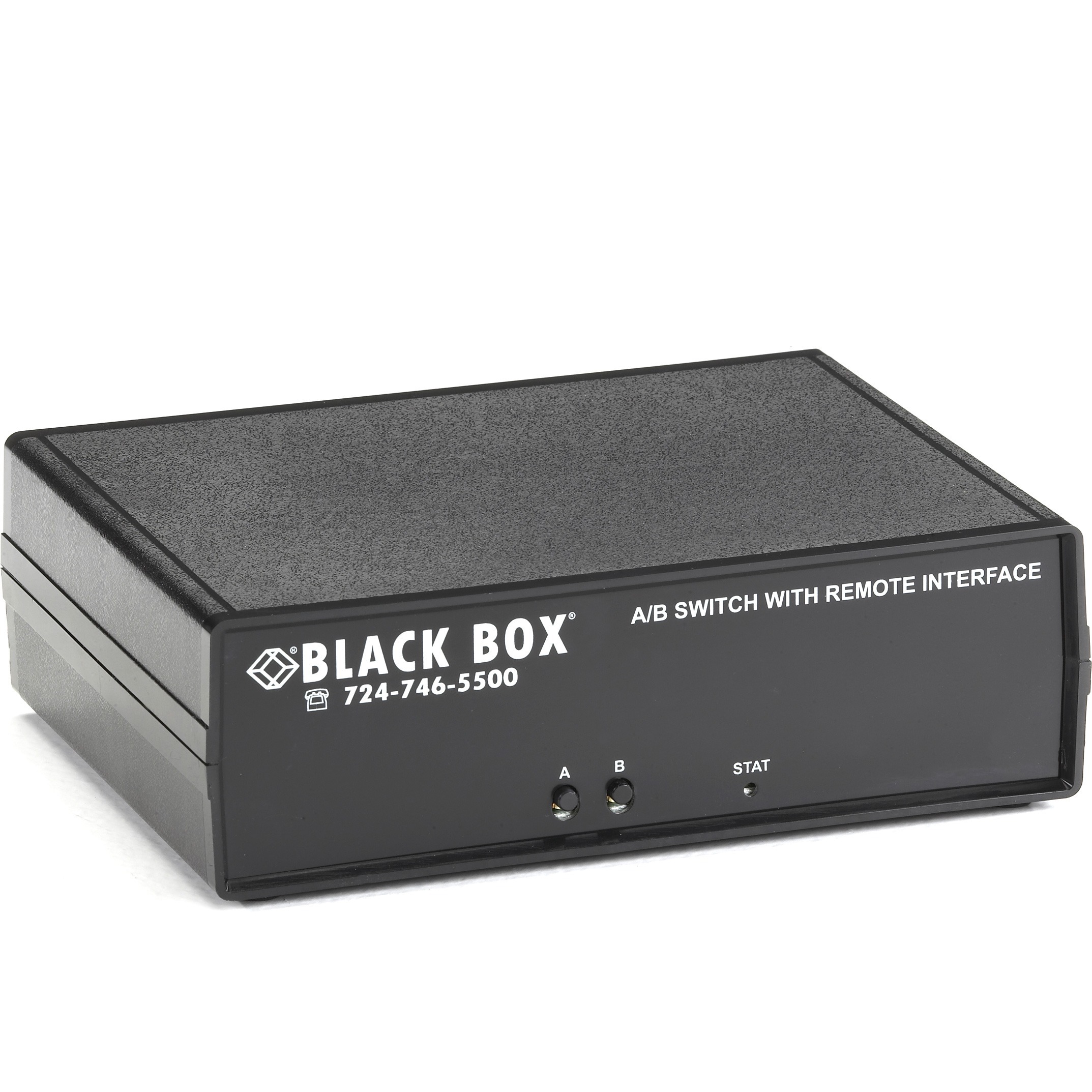

Black Box SW1040A Accessory

Black Box  -  Black Box CAT6 A/B Switch - Latching RJ45 Remote Control, Dry Contact - - Manual - TAA Compliant
  • Switch ports are transparent to data rates, formats, and protocols and can handle speeds up to 10 Gbps.
  • Manual control of the switch port connection state is supported through pushbutton switches on the front of the unit.
  • The connection state will be maintained if power fails or is removed.
  • Connecting (shorting) input A (pin 1) to Ground (pin 2) for a minimum of approximately 100 msec will cause the unit to switch to the A position.
  • Connecting (shorting) input B (pin 3) to Ground (pin 2) for a minimum of approximately 100 msec will cause the unit to switch to the B position.
  • If desired, the A or B control input can remain connected to the Ground input, which will disable all other control interfaces including the front panel pushbutton switches from being able to switch connection states of the A/B Switch.
Read More
Add to Quote
$537.55
Technical Information
Switching Type:
Manual
Physical Characteristics
Height:
2.5"
Width:
6.3"
Depth:
8.1"
Weight (Approximate):
4 lb
Miscellaneous
Additional Information:
  • Data Rate 10/100/1000 and 10G Ethernet
  • Power Input: 100-240 VAC, 50-60 Hz, autosensing; Output: 5 VDC
  • Switching Speed Typical: 5 msec; Maximum: 10 msec

Connectors:

  • A/B switch ports: (3) RJ-45
  • Remote control/status port: (1) 6-position terminal block
  • Power: (1) 2.1 x 5.5-mm power input
Certifications & Standards:
FCC
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
United States
TAA Compliant:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0818287144269, 0822088118176
UPC: 818287144269, 822088118176
EAN: 0818287144269, 0822088118176
UNSPSC: 43211601
