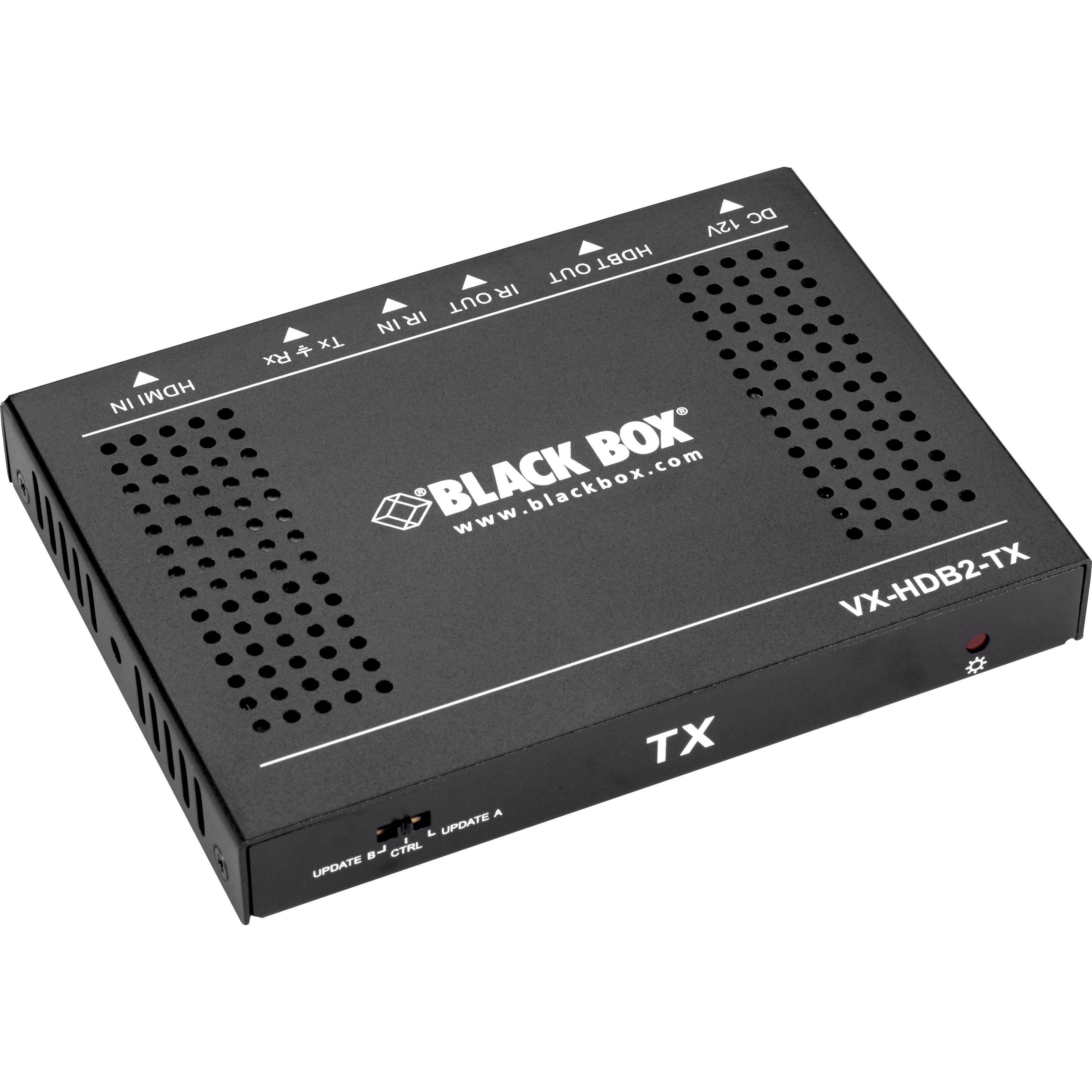

Black Box VX-HDB2-TX Accessory

Black Box - Black Box Video Extender Transmitter - 1 Input Device - 229 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - Serial Port - 4K - Twisted Pair - Category 6a

Supports 4K/UHD/60 Hz/4:4:4
Supports HDMI 2.0 and HDCP 2.2 and is backwards-compatible to the previous versions
Maximum transmission distance is up to 131 feet (40 meters) for 4K x 2K and up to 229 feet (70 meters) for 1080p
Uses CEC, IR, and RS-232 passthrough for long-distance control
Includes bi-directional PoC for simplied wiring
Supports HDR
Includes a DIP switch for Control, Update A, and Update B

Need a different version? See all Black Box Parts Products

Chat Now for Qty Discount

Add to Quote

$328.43

Detailed Specs

Technical Information

Connectivity Technology:

Wired

Number of Input Devices Supported:

Maximum Operating Distance:

229 ft

Video

Graphics Modes:

Interfaces/Ports

Network (RJ-45):

Yes

HDMI In:

Yes

Serial Port:

Yes

Number of Network (RJ-45) Ports:

Number of HDMI Inputs:

Media & Performance

Media Type Supported:

Twisted Pair

Twisted Pair Cable Standard:

Category 6a

Physical Characteristics

Transmitter Height:

0.60"

Transmitter Width:

4.50"

Transmitter Depth:

3.30"

Transmitter Weight (Approximate):

5.28 oz

Miscellaneous

Package Contents:

Video Extender Transmitter
4 x Mounting Ears with (4) Screws
1 x RS-232 Cable
1 x 12-VDC, 2-A Power Supply

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Country of Origin:

China

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0822088132745, 0999558707830

UPC: 822088132745, 999558707830

EAN: 0822088132745, 0999558707830

UNSPSC: 43201614
