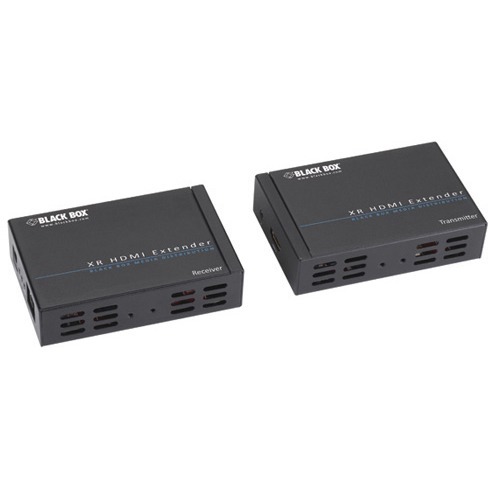

Black Box VX-HDMI-TP-100M Accessory

Black Box  -  Black Box XR HDMI and IR Extender - 1 Input Device - 1 Output Device - 328.08 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - Wall Mountable
  • Uses a single CAT5e/6 run, reducing cable clutter and simplifying HDMI® signage deployment
  • Extends uncompressed HD video, audio, and control signals up to 328 feet (100 m)*
  • Supports IR extension with CEC passthrough. Control source devices at the screen
  • Great video capacity and 3D support
  • Provides 10.2 Gbps of HDMI video bandwidth on all channels
  • Supports 1080p video at 60 Hz and 48-bit pixel rates
  • No software or driver installation required
  • HDCP compliant and Blu-ray ready
  • Includes transmitter, receiver, IR emitter, and IR receiver
  • Wallmountable for space-saving installation
Read More

Need a different version? See all Black Box Parts Products

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$549.42
Black Box VX-HDMI-TP-100M Accessory
Black Box VX-HDMI-TP-100M Accessory
Technical Information
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
1
Maximum Operating Distance:
328.08 ft
Video
Graphics Modes:
Full HD
Maximum Video Resolution:
1920 x 1080
Interfaces/Ports
Network (RJ-45):
Yes
HDMI In:
Yes
HDMI Out:
Yes
Number of Network (RJ-45) Ports:
2
Number of HDMI Inputs:
1
Number of HDMI Outputs:
1
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 6
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Transmitter Height:
1"
Transmitter Width:
2.60"
Transmitter Depth:
3.90"
Form Factor:
Wall Mountable
Transmitter Weight (Approximate):
6.40 oz
Miscellaneous
Package Contents:
  • Transmitter
  • Receiver
  • 2 x Power Supplies
  • IR Emitter
  • IR Receiver
  • 4 x Wallmount Brackets With (8) Screws
  • User Manual
Certifications & Standards:
CE
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0818287021645, 0822088062899
UPC: 818287021645, 822088062899
EAN: 0818287021645, 0822088062899
UNSPSC: 45111815
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Black Box VX-HDMI-TP-100M Accessory is also known as BLB-VXHDMITP100M
