Bogen HFCS1B Telecommunication Equipment

Bogen - Bogen HFCS1B 2-way Ceiling Mountable Speaker - 32 W RMS - Black - 65 Hz to 19 kHz - 16 Ohm

The 2-way Ceiling Mountable speakers provide the finest sound coverage
Handles up to 32 W of RMS power
Listen to deep lows and euphoric highs with a frequency range of sound from 65 Hz-19 kHz
16 Ohm impedance extracts maximum power so you will get more output from your speakers

Need a different version? See all Bogen Parts Public Address Equipments

Chat Now for Qty Discount

Add to Quote

$144.05

Bogen HFCS1B Telecommunication Equipment

Overview

Bogen Parts Public Address Equipment Model Overview

Products and parts from Bogen.

Bogen HFCS1B Telecommunication Equipment Overview

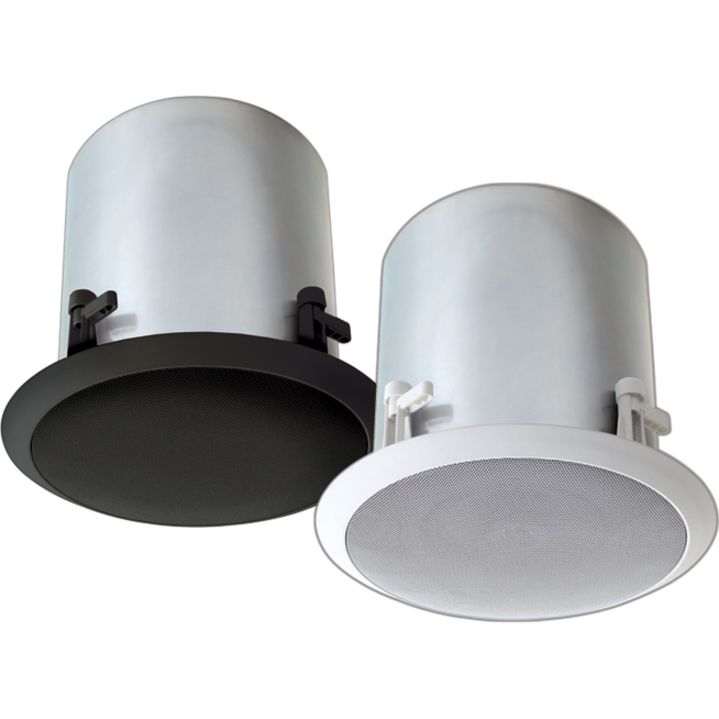

The Bogen HFCS1(B) and HFCS1LP(B) ceiling loudspeakers deliver superior sound and clear intelligibility in a variety of ceiling environments.

The system can be easily installed in hard-surfaced ceilings, suspended ceilings, and new constructions.

Both speakers offer several levels of power output controlled via a front-mounted rotary tap selector switch (under grille). The low-distortion speaker design, coupled with a computer-matched venting system, delivers high intelligibility and exceptional low-frequency response for both music and speech reinforcement.

Detailed Specs

Technical Information

Crossover Type:

2-way

Cable Length:

10 ft

RMS Output Power:

32 W

PMPO Output Power:

75 W

Woofer Driver Size:

6.50"

Woofer Driver Material:

Polypropylene

Tweeter Driver Size:

0.75"

Tweeter Driver Material:

Polycarbonate

Minimum Frequency Response:

65 Hz

Maximum Frequency Response:

19 kHz

Impedance:

16 Ohm

Sound Pressure Level:

89 dB

Sensitivity:

89 dB

Physical Characteristics

Product Color:

Black

Product Material:

Steel
Rubber
Acrylonitrile Butadiene Styrene (ABS)

Tweeter Material:

Polycarbonate

Woofer Material:

Polypropylene

Form Factor:

Ceiling Mountable

Depth:

12"

Diameter:

12.3"

Weight (Approximate):

9 lb

Miscellaneous

Package Contents:

High-Fidelity Ceiling Speaker
Input Terminal Cover
4 x Screws
1 x Plug-in Input Connector

Certifications & Standards:

UL-2043
UL 60065
94VO

Warranty

Limited Warranty:

3 Year

Item Numbers

UNSPSC: 52161512
