Bosch Parts Accessory Model Overview
Products and parts from Bosch.

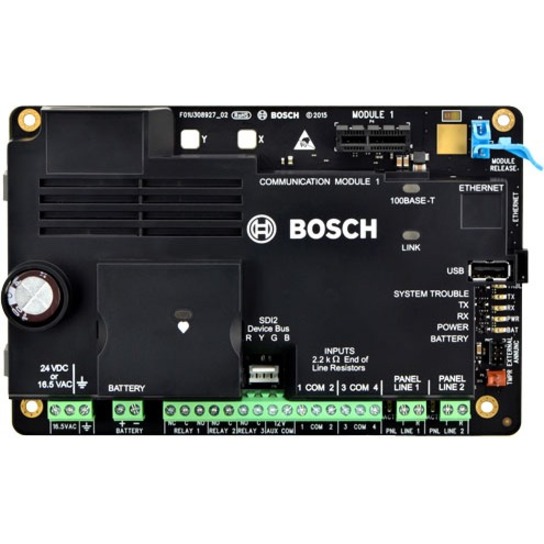

Bosch B465 Accessory Overview
The B465 Conettix Universal Dual Path Communicator converts the Public Switch Telephone Network (PSTN) digital dialer, or dry contact outputs from an intrusion/ fire control panel to an IP signal for transmission over the Ethernet or cellular network. The B465 Conettix Universal Dual Path Communicator is UL 864 10 th Edition approved per NFPA 72 version 2013.
The module can use its built-in Ethernet connection, and/or an optional Conettix plug-in cellular module (B440/B441/B442/B443) to send reports to the central station receiver.
Automation programming for the supported control panel remains unchanged with the installation of the B465 module, thus simplifying the installation process This allows for a smooth transition from the PSTN realm into IP. All messages generated internally by the B465 are shown in Contact ID format at the central station.
The module can be powered from a 16.5 VAC transformer or 24 VDC power supply.
The module can use its built-in Ethernet connection, and/or an optional Conettix plug-in cellular module (B440/B441/B442/B443) to send reports to the central station receiver.
Automation programming for the supported control panel remains unchanged with the installation of the B465 module, thus simplifying the installation process This allows for a smooth transition from the PSTN realm into IP. All messages generated internally by the B465 are shown in Contact ID format at the central station.
The module can be powered from a 16.5 VAC transformer or 24 VDC power supply.
Network & Communication
Power Description
Input Voltage:
24 V AC
Miscellaneous
Package Contents:
- B465 Universal Dual Path Communicator
- B11R (Small) Enclosure
- D101 Lock and Key Set
- D1640 Transformer
- D8004 Transformer Enclosure
Certifications & Standards:
- UL
- CSFM
- FCC
- ULC
Country of Origin:
China
Item Numbers
GTIN:
0800549813679
UPC:
800549813679
EAN:
0800549813679
Get help from a Barcoding Expert!
The Bosch B465 Accessory is also known as
BOS-B465
