Bosch CNFE1003S2 Products

Bosch - 100Mbps Media Converter, SC Connector, sm, 2 fiber

Attach multiple devices together or expand the number of devices connected to your existing network by using 3 transceiver/media converter
Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
With 10/100Base-T technology get up to 100Mbps data transfer rate over optical fiber cable
Rackmountable feature for convenient and safe installation of device

Need a different version? See all Bosch Parts Accessories

Chat Now for Qty Discount

Add to Quote

$734.85

Larger View

Overview

Bosch Parts Accessory Model Overview

Products and parts from Bosch.

Bosch CNFE1003S2 Products Overview

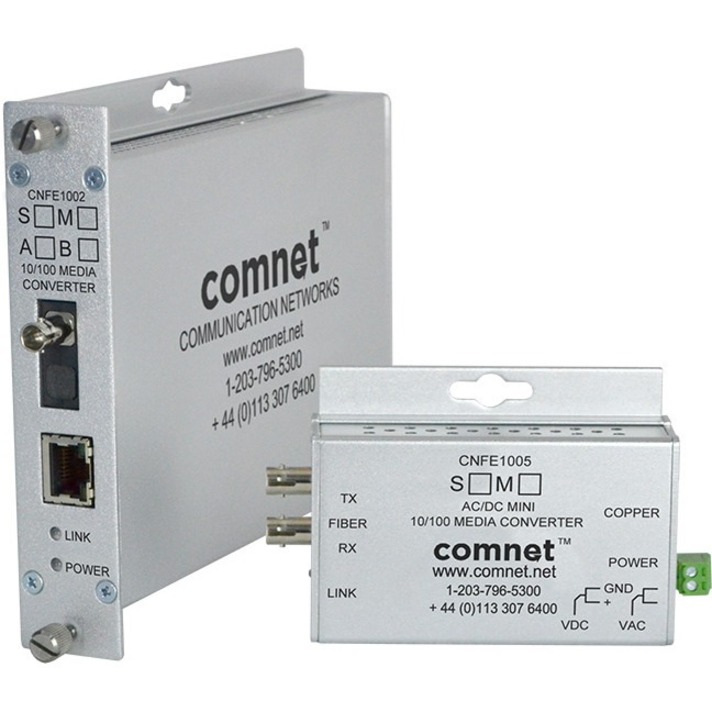

The ComNet™ Ethernet CNFE100X media converter series are one-channel Ethernet electrical to optical media converters. These auto-negotiating devices accept a 10/100 Mbps electrical input and convert this to a 100 Mbps optical output. This series of media converters use multimode and single-mode optical fiber and one and two fiber SC and ST optical connectors. LED indicators confirm operational status. All models are environmentally hardened with no electrical or optical adjustments (Plug and Play). Packaged in the exclusive ComNet ComFit housing, the standard size units may be either wall or rack mounted. Models within the series are also available in a small size. The units are powered by an included DC power supply.

Detailed Specs

Interfaces/Ports

Total Number of Ports:

Network (RJ-45):

Yes

DVI:

USB:

Management Port:

Number of Network (RJ-45) Ports:

Number of SC Ports:

SC Port Type:

Duplex

Media & Performance

Media Type Supported:

Optical Fiber
Twisted Pair

Fiber Mode Supported:

Single-mode

Fiber Optic Wavelength:

1310 nm

Maximum Distance Supported:

12.43 Mile

Network & Communication

Ethernet Technology:

Fast Ethernet

Network Technology:

10/100Base-T
10/100Base-TX
100Base-FX

Power Description

Power Source:

Power Supply

Physical Characteristics

Form Factor:

Rail-mountable
Wall Mountable
Rack-mountable

Height:

1.1"

Width:

5.3"

Depth:

6.1"

Miscellaneous

Package Contents:

CNFE1003S2A Transceiver/Media Converter
Power Supply

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Country of Origin:

United States

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0845770002027

UPC: 845770002027

EAN: 0845770002027

UNSPSC: 43201553
