Bosch CNFE1005MAC2-M Products

Bosch  -  SM SIZE 1OOMBPS MEDIA CONVRTER ST CONNECTOR, AC/DC POWER
  • Expand your network capabilities with this 2 transceiver/media converter
  • Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
  • With 10/100Base-TX technology get up to 100Mbps data transfer rate over optical fiber cable
  • The Wall Mountable provides convenient installation
Read More

Need a different version? See all Bosch Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$612.68
Bosch CNFE1005MAC2-M Products
Bosch CNFE1005MAC2-M Products
Bosch CNFE1005MAC2-M Products Bosch CNFE1005MAC2-M Products
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch CNFE1005MAC2-M Products Overview

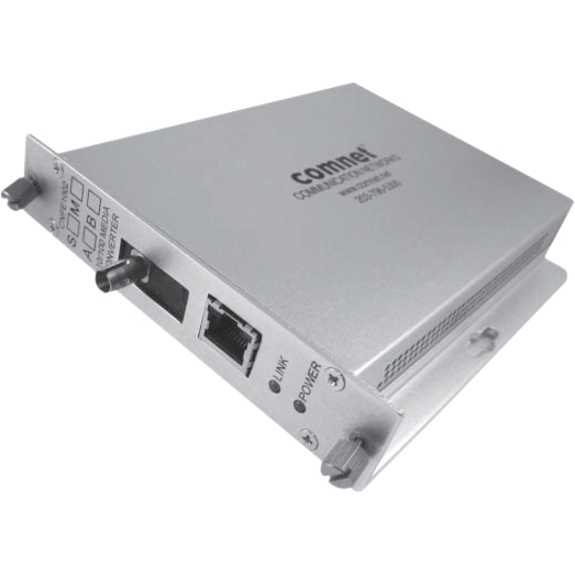

The ComNet Ethernet media converters are designed to transmit and receive 10/100 Mbps data over multimode or single mode optical fiber. The electrical interface will Auto-Negotiate to a 10 Mbps, or 100 Mbps Ethernet rate without any adjustments. The optical interface operates at a 100 Mbps Ethernet rate. These media converters are environmentally hardened to operate in extreme temperatures. LED indicators are provided for rapidly ascertaining equipment operating status. Packaged in the exclusive ComNet ComFit housing, the standard size units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.

Interfaces/Ports
Total Number of Ports:
2
Network (RJ-45):
Yes
DVI:
No
USB:
No
Parallel Port:
No
Digital Audio:
No
Digital Audio/Video:
No
Management Port:
No
Number of Network (RJ-45) Ports:
1
Number of ST Ports:
1
Media & Performance
Media Type Supported:
  • Optical Fiber
  • Twisted Pair
Fiber Mode Supported:
Multi-mode
Maximum Distance Supported:
1.86 Mile
Network & Communication
Ethernet Technology:
Fast Ethernet
Network Technology:
  • 10/100Base-TX
  • 100Base-FX
Power Description
Input Voltage:
9 V DC
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Rack-mountable
  • Rail-mountable
Height:
1.1"
Width:
2.5"
Depth:
3.3"
Miscellaneous
Package Contents:
  • 10/100 Mbps Ethernet Electrical to Optical Media Converter
  • 9 Volt DC Plug-in Power Supply
Certifications & Standards:
  • IEEE 802.3
  • FCC Part 15
  • CE
  • cUL
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0845770004113
UPC: 845770004113
EAN: 0845770004113
UNSPSC: 43201553
