Bosch CNFE22MC Products

Bosch  -  Dual 2 Port 100Mbps MEDIA CONVERTER

  • Connect different types of media within a network with this single port
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • With 10/100Base-TX technology get up to 100Mbps data transfer rate over optical fiber cable
  • The Rack-mountable provides convenient installation
Read More
Need a different version? See all Bosch Parts Accessories
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$1,133.03
Bosch CNFE22MC Products
Bosch CNFE22MC Products
Bosch CNFE22MC Products Bosch CNFE22MC Products

Bosch Parts Accessory Model Overview

Products and parts from Bosch.
Bosch CNFE22MC Products Overview

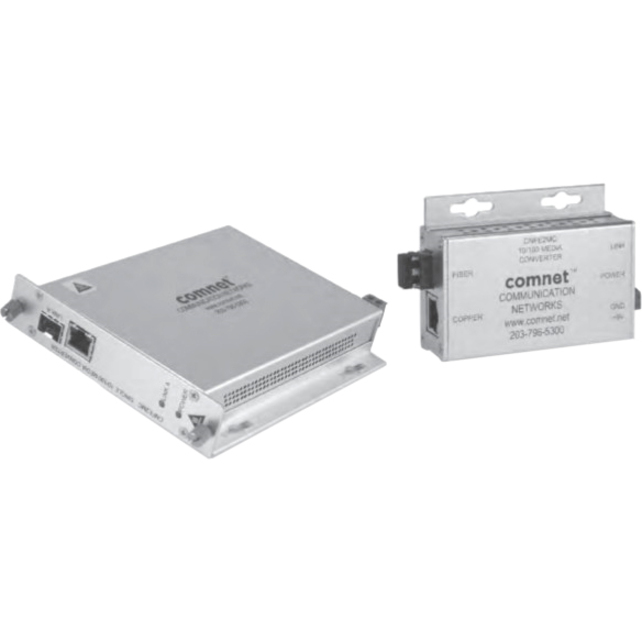

The ComNet™ CNFE2MC Ethernet and CNFE22MC media converters are designed to transmit and receive 10/100 Mbps data over optical fiber through user selectable SFP options. These models require the ordering of sold-separately interchangeable SFP modules for fiber type, distance and connectors. The CNFE2MC transmits and receives a single channel of Ethernet data and the CNFE22MC transmits and receives two independent channels in one unit. The electrical interface will Auto-Negotiate to a 10 Mbps, or 100 Mbps Ethernet rate without any adjustments. The optical interface operates at a 100 Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status. Packaged in the exclusive ComNet ComFit housing, the CNFE2MC and CNFE22MC units may be either wall or rackmounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.
Interfaces/Ports
Total Number of Ports:
1
Network (RJ-45):
Yes
DVI:
No
USB:
No
Parallel Port:
No
Digital Audio:
No
Digital Audio/Video:
No
Management Port:
No
Number of Network (RJ-45) Ports:
1
Media & Performance
Media Type Supported:
Twisted Pair
Maximum Distance Supported:
49.71 Mile
I/O Expansions
Number of Total Expansion Slots:
1
Expansion Slot Type:
SFP
Number of SFP Slots:
1
Network & Communication
Ethernet Technology:
Fast Ethernet
Network Technology:
  • 10/100Base-TX
  • 100Base-FX
Power Description
Input Voltage:
9 V DC
Physical Characteristics
Form Factor:
  • Rack-mountable
  • Rail-mountable
Height:
1.1"
Width:
2.5"
Depth:
3.3"
Miscellaneous
Package Contents:
  • 10/100 Mbps Ethernet Media Converter - Two Independent Channels
  • Power Supply
Certifications & Standards:
  • CE
  • FCC

IEEE Standards:

  • 802.3
  • 802.3u
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0845770001068
UPC: 845770001068
EAN: 0845770001068
UNSPSC: 43201553
