Bosch CNFE2MC2C/M Products

Bosch - 2CH BIDIR CC OVER Ethernet

Electrical ports support Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data.
Optical port supports 100 Mbps full duplex data
Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
IEEE 802.3 compliant
Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput

Need a different version? See all Bosch Parts Accessories

Chat Now for Qty Discount

Add to Quote

$1,040.72

Overview

Bosch Parts Accessory Model Overview

Products and parts from Bosch.

Bosch CNFE2MC2C/M Products Overview

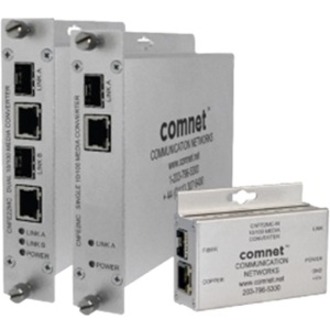

The ComNet™ CNFE2MC2C[/M] Ethernet media converter is designed to transmit and receive 10/100 Mbps data and two bi-directional contact closures over multimode or single mode optical fiber using sold-separately SFP* modules to select distance and connector type. The electrical interface will Auto-Negotiate to a 10 Mbps, or 100 Mbps Ethernet rate without any adjustments. The optical interface operates at a 100 Mbps Ethernet rate. These media converters are environmentally hardened to operate in extreme temperatures. The CNFE2MC2C/M small package size is ideal for locations where space is at a premium. Packaged in the exclusive ComNet ComFit housing, the full size CNFE2MC2C may be rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.

Detailed Specs

Interfaces/Ports

Total Number of Ports:

Network (RJ-45):

Yes

Number of Network (RJ-45) Ports:

Media & Performance

Media Type Supported:

Twisted Pair
Optical Fiber

Fiber Mode Supported:

Single-mode
Multi-mode

I/O Expansions

Expansion Slot Type:

SFP

Network & Communication

Ethernet Technology:

Fast Ethernet

Network Technology:

10/100Base-TX
100Base-FX

Power Description

Power Source:

Power Supply

Power Consumption:

8 W

Plug/Connector Type:

Terminal Block

Physical Characteristics

Form Factor:

Rack-mountable
DIN Rail Mountable

Height:

1.1"

Width:

6.1"

Depth:

5.3"

Miscellaneous

Package Contents:

CNFE2MC2C[/M] Transceiver/Media Converter
DC Plug-in Power Supply, 90-264 VAC, 50/60 Hz

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Country of Origin:

United States

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0845770010510

UPC: 845770010510

EAN: 0845770010510

UNSPSC: 43201553
