Bosch CNFE4+1SMSS2POE Products

Bosch - 5 PORT SELF-MANAGED SWITCH 10/100 MBPS ETHERNET

Effectively reduces downtime with improved network performance
With PoE+ Port, transfer data and up to 25.5 W of power on a single cable to?places where a power outlet is not present
Quickly and easily set up a wired network with 5 networking ports
Built-in power supply to ensure all components are being supplied with accurate voltage
With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
Wall Mountable form factor allows hassle-free and easy usage with increased efficiency
Managed switch provides a reliable foundation for your network
Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters

Need a different version? See all Bosch Parts Accessories

Chat Now for Qty Discount

Add to Quote

$1,558.66

Overview

Bosch Parts Accessory Model Overview

Products and parts from Bosch.

Bosch CNFE4+1SMSS2POE Products Overview

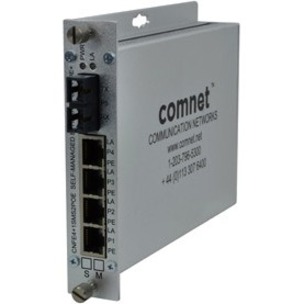

The ComNet™ CNFE4+1SMS(M,S)2 is a five-port self-managed Ethernet switch with uplink management functionality. It provides 4 ports operating at 10/100 Mbps and is designed to combine Ethernet data from the four electrical ports into a single optical port and forward that data to the next network device, using two-fiber ST or SC optical connectors. There is no programming required to use this switch. The ComNet CNFE4+1SMS comes pre-programmed, preventing network video flooding with a switch selection that allows the fiber port to be used as an uplink or as an unmanaged switch. It is "Plug-and-Play" easy to use. LED indicators confirm the operating status of this device. The ComNet CNFE4+1SMS may be either wall mounted, rack mounted ("ComFit" packaging) or DIN -rail mounted with the use of the ComNet DINBKT1 adapter.

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Token Ring Port:

LRE Port:

USB:

Number of PoE+ (RJ-45) Ports:

Stack Port:

Number of ST Ports:

ST Port Type:

Duplex

Port/Expansion Slot Details:

5 x Fast Ethernet Network

Media & Performance

Media Type Supported:

Twisted Pair
Optical Fiber

Fiber Optic Cable Standard:

9/125 µm

Fiber Mode Supported:

Single-mode

Ethernet Technology:

Fast Ethernet

Network Technology:

10/100Base-TX
10/100Base-FX

Network & Communication

Layer Supported:

Management & Protocols

Manageable:

Yes

Reliability

MTBF:

100000 Hour

Power Description

PoE (RJ-45) Port:

Power Source:

Power Supply

Physical Characteristics

Form Factor:

Wall Mountable
Rack-mountable
Rail-mountable
Desktop

Height:

6.1"

Width:

1.1"

Depth:

5.3"

Miscellaneous

Certifications & Standards:

CE
C-Tick
cUL
FCC
IEEE 802.3
IEEE 802.3at

Environmentally Friendly:

Yes

Environmental Certification:

WEEE
RoHS

Country of Origin:

United States

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0845770009484

UPC: 845770009484

EAN: 0845770009484

UNSPSC: 43222612

Reviews

Q&A

Get help from a Barcoding Expert!

The Bosch CNFE4+1SMSS2POE Products is also known as CCN-CNFE41SMSS2POE
