Bosch CNFE6+2USPOE-S Products

Bosch - UNMANAGED SWITCH,8PORT,100MBPS 6COPPER,2FX,SINGLE-MODE,POE

Ethernet Switch provides dependable and powerful connectivity for maximum usability
Electrical power is transmitted along with data in a single cable?to devices such as Access Points, IP cameras or IP phones
Expand your network capacity with the help of 8 networking ports and transfer your data quickly and easily
No need to deal with power supply issues, the switch comes with a separate AC adapter to power up the unit
Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
Wall Mountable form factor allows hassle-free and easy usage with increased efficiency
Management capability provides control over setup and configuration of your network
Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters

Need a different version? See all Bosch Parts Accessories

Chat Now for Qty Discount

Add to Quote

$1,290.28

Overview

Bosch Parts Accessory Model Overview

Products and parts from Bosch.

Bosch CNFE6+2USPOE-S Products Overview

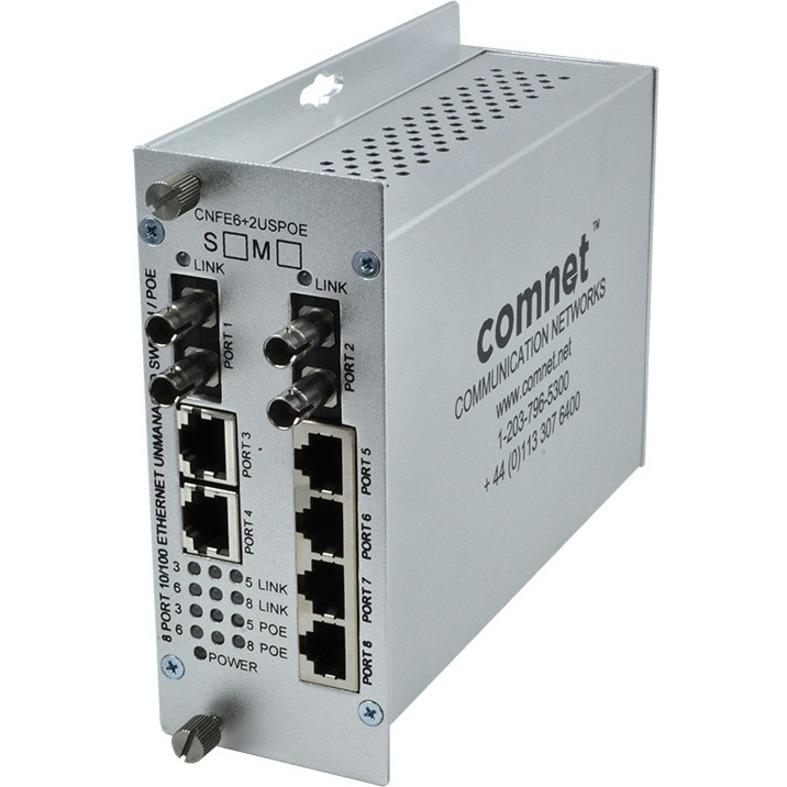

The ComNet CNFE6+2USPOE provides 8 Ethernet ports operating at 10/100 Mbs and is designed to combine six electrical ports plus one optical port into a second optical port that forwards this data to the next CNFE6+2USPOE. The optical ports are designed to forward the data from the six electrical ports to the next switch, to a PC, or another Ethernet connection. In addition, the electrical ports can supply up to thirty (30) watts of power ("Power Over Ethernet") to remote Ethernet devices. This product uses ST optical connections and can be supplied to operate over Singlemode or Multimode optical fiber.

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Token Ring Port:

LRE Port:

Management Port:

USB:

Number of PoE (RJ-45) Ports:

Stack Port:

Number of ST Ports:

ST Port Type:

Duplex

Port/Expansion Slot Details:

8 x Fast Ethernet Network

Media & Performance

Media Type Supported:

Twisted Pair
Optical Fiber

Fiber Mode Supported:

Single-mode

Ethernet Technology:

Fast Ethernet

Network Technology:

10/100Base-TX
10/100Base-FX

Network & Communication

Layer Supported:

Management & Protocols

Manageable:

Yes

Reliability

MTBF:

100000 Hour

Power Description

PoE (RJ-45) Port:

Power Source:

AC Adapter

Physical Characteristics

Form Factor:

Wall Mountable
Rail-mountable
Rack-mountable
Desktop

Height:

2.2"

Width:

5.3"

Depth:

6.1"

Miscellaneous

Certifications & Standards:

FCC
CE
C-Tick
cUL

IEEE Standards:

802.3
802.3af
802.3at
802.1x

Environmentally Friendly:

Yes

Environmental Certification:

WEEE
RoHS

Country of Origin:

United States

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0845770007602

UPC: 845770007602

EAN: 0845770007602

UNSPSC: 43222612
