Bosch CNFE8FX4TX4US Products

Bosch  -  Unmanaged Switch 8 Port 100Mbps, 4 Fiber, 4 Copper,
  • Ethernet Switch ensures productivity by providing an efficient, hassle-free connection
  • Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 4 ports
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
  • Wall Mountable form factor for added reliability and dependability
  • The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
  • Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Read More

Need a different version? See all Bosch Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$709.02
Bosch CNFE8FX4TX4US Products
Bosch CNFE8FX4TX4US Products
Bosch CNFE8FX4TX4US Products Bosch CNFE8FX4TX4US Products
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch CNFE8FX4TX4US Products Overview

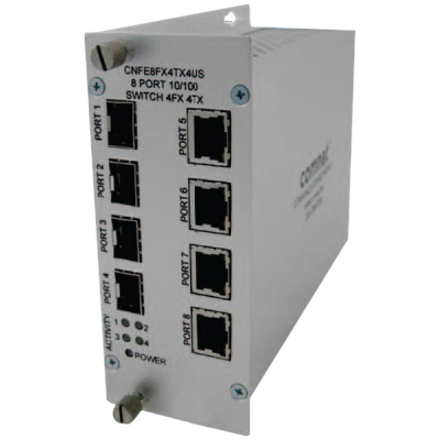

The ComNet™ CNFE8US Series Ethernet 8 port unmanaged switch is designed to transmit and receive 10/100 Mbps data over optical fiber through user selectable SFP options or 10/100 Mbps data over CAT5E/6 electrical cable. This unit integrates eight independent 10/100 Mbps channels in a single package. The CNFE8FX4TX4US and CNFE8FX8US require the ordering of sold-separately interchangeable SFP modules for fiber type, distance and connectors. All electrical interfaces will Auto-Negotiate to 10 Mbps, or 100 Mbps Ethernet rate without any adjustments. The optical interfaces operate at a 100 Mbps Ethernet rate. The CNFE8US Series models are environmentally hardened to operate in demanding environments. LED indicators are provided for confirming equipment operating status. These units are interchangeable between stand-alone or card mount configurations.

Interfaces/Ports
Total Number of Network Ports:
4
Token Ring Port:
No
LRE Port:
No
Uplink Port:
No
Bypass:
No
Modular:
No
Management Port:
No
USB:
No
Stack Port:
No
Number of Network (RJ-45) Ports:
4
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 6
Ethernet Technology:
Fast Ethernet
Network Technology:
10/100Base-TX
I/O Expansions
Number of Total Expansion Slots:
4
Expansion Slot Type:
SFP
Shared SFP Slot:
Yes
Number of SFP Slots:
4
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
No
Reliability
MTBF:
100000 Hour
Power Description
PoE (RJ-45) Port:
No
Power Source:
Power Supply
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Rack-mountable
  • Rail-mountable
Height:
6.1"
Width:
2.2"
Depth:
5.3"
Miscellaneous
Package Contents:
  • 10/100 Mbps Ethernet 8 Port Unmanaged Switch
  • Power Supply
Certifications & Standards:
  • IEEE 802.3
  • FCC
  • cUL
  • CE
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0845770001761
UPC: 845770001761
EAN: 0845770001761
UNSPSC: 43222612
