Bosch - Hardened Power over Ethernet (PoE+) Midspan Injector

Easily combines operating power and 10/100/1000T(X) Ethernet data to one network cable
Fully Compliant with IEEE Standard 802.3at for Power Sourcing Equipment
Provides up to 95 W of PoE power for ultra high power PD devices
Designed for deployment in industrial -40º to +75º C operating environments.
Rugged, compact package for installation where space may be limited
Ease of installation & true plug-and-play operation: no user configuration or settings required
Unit can be DIN rail mounted or wall mounted using the included adaptor kit

Need a different version? See all Bosch Parts Accessories

Chat Now for Qty Discount

Add to Quote

$345.71

Overview

Bosch Parts Accessory Model Overview

Products and parts from Bosch.

Bosch CNGE1IPS Products Overview

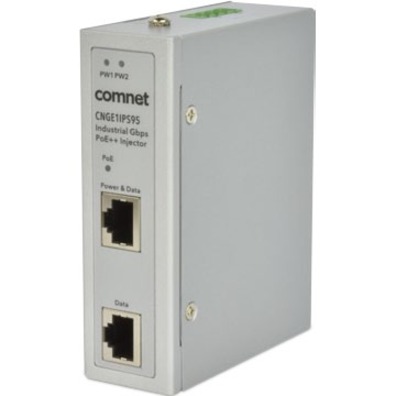

The ComNet CNGE1IPS95 is an industrial power over Ethernet (PoE+) midspan injection module that injects 48-56 VDC at up to 95 W to any network cable. Operating power and 10/100/1000T(X) Ethernet data are easily combined on one cable, eliminating the need to install additional power outlets and electrical cabling. The CNGE1IPS95 is fully compliant with the requirements of IEEE 802.3at for Power Sourcing Equipment (PSE), and features auto detection of powered devices (PDs). Transmission distances of up to 330 feet (100 meters) are supported, and this injector supplies operating power for all PDs drawing a maximum of 95 watts. Ideally suited to fiber optic, wireless, or other networks where it may be difficult to furnish operating power to the PDs, the CNGE1IPS95 is a true plug-and-play product requiring no user configuration or other set-up.

Features

Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.

Applications

Remote operating power for IP CCTV cameras for security and surveillance systems
Remote operating power for Voice over IP (VoIP) telephony networks
Remote operating power for wireless LAN access points
Industrial Security, Transportation/ITS, and Industrial Control/Factory Automation IP Networks

Detailed Specs

Power Description

Input Voltage:

50 V DC
57 V DC

Minimum Output Voltage:

50 V DC

Maximum Output Voltage:

57 V DC

Maximum Output Power:

95 W

Interfaces/Ports

Input Ports:

1 x 10/100/1000TX

Output Ports:

1 x 10/100/1000TX

Physical Characteristics

Form Factor:

DIN Rail/Wall Mountable

Height:

4.1"

Width:

1.3"

Depth:

3.2"

Miscellaneous

Package Contents:

PoE Injector
Adapter Kit

Compatibility:

IP CCTV Cameras
Surveillance Systems
Wireless LAN Access Points

Certifications & Standards:

CC Part 15 Subpart B Class A
CE EN 55022 Class A
IEC EN60950-1
EN 50155 / EN 60068-2-6
EN 50155 / EN 60068-2-27
EN 50155 / EN 60068-2-32
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3at

Item Numbers

UNSPSC: 39121004

Reviews

Q&A

Get help from a Barcoding Expert!

The Bosch CNGE1IPS Products is also known as CCN-CNGE1IPS
