Bosch  -  DUAL MEDIA CONVERTER 1000 MBPS
  • Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
  • With Twisted Pair cable, get the desired data transfer rate up to a required distance
  • With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over supported network cable
  • The Rack-mountable provides convenient installation
Read More

Need a different version? See all Bosch Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$1,744.80
Bosch CNGE22MC Products
Bosch CNGE22MC Products
Bosch CNGE22MC Products Bosch CNGE22MC Products
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch CNGE22MC Products Overview

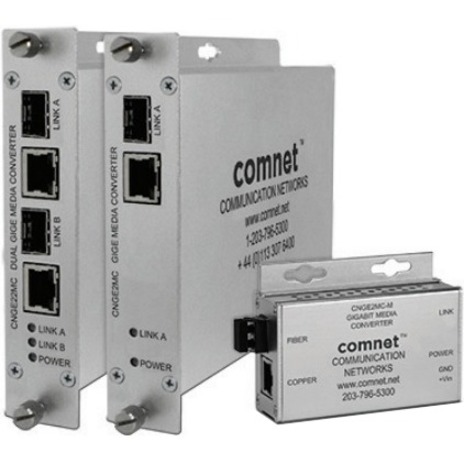

The ComNet™ CNGE2MC and CNGE22MC are one-channel and two-channel, Gigabit Ethernet electrical to optical media converters. These auto-negotiating devices accept a 10/100/1000 Mbps electrical input and convert this to a 1000 Mbps (1Gbs) optical output. These units use ComNet SFPs (small form-factor pluggable) modules for fiber and connector type, and distance. LED indicators confirm operational status. All models are environmentally hardened with no electrical or optical adjustments (Plug and Play). Packaged in the exclusive ComNet ComFit housing, the standard size units may be either wall or rack mounted. The CNGE2MCM is available in a small size package. The units are powered by an included 8-15VDC power supply.

Interfaces/Ports
Total Number of Ports:
2
Network (RJ-45):
Yes
DVI:
No
USB:
No
Management Port:
No
Number of Network (RJ-45) Ports:
2
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Maximum Distance Supported:
74.56 Mile
I/O Expansions
Number of Total Expansion Slots:
2
Expansion Slot Type:
SFP
Number of SFP Slots:
2
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 1000Base-X
Power Description
Power Source:
AC Adapter
Physical Characteristics
Form Factor:
  • Rack-mountable
  • Rail-mountable
Height:
6.1"
Width:
5.3"
Depth:
1.1"
Miscellaneous
Package Contents:
  • 4 Port (2 Channel) 10/100/1000 Mbps Ethernet Media Converter
  • 8-15VDC Power Supply
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0845770001747
UPC: 845770001747
EAN: 0845770001747
UNSPSC: 43201553
