Bosch CNGE2FE24MSPOE Products

The Bosch CNGE2FE24MSPOE Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Bosch - MANAGED SWITCH 2X1000MPS + 24X100MBPS POE P/S NOT INCLUD

Effectively reduces downtime with improved network performance
Electrical power is transmitted along with data in a single cable?to devices such as Access Points, IP cameras or IP phones
Features 24 networking ports to establish large network
Power Supply power source for a reliable connection even during power outages
With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
Rack mounting enables you to organize wires & secure cables for professional installation
Managed switch provides a reliable foundation for your network
Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
32 MB memory seamlessly handles multiple connections together

Need a different version? See all Bosch Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

Bosch Parts Accessory Model Overview

Products and parts from Bosch.

Bosch CNGE2FE24MSPOE Products Overview

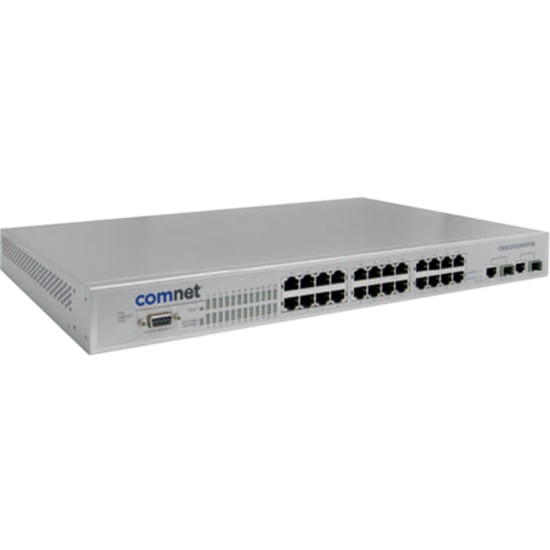

The ComNet™ CNGE2FE24MSPoE Managed Ethernet Switch provides transmission of (24) 10/100 BASETX and (2) 10/100/1000TX or 1000FX combo ports. Unlike most Ethernet switches, these environmentally hardened units are designed for deployment in difficult operating environments, and are available for use with either conventional CAT-5e copper or optical transmission media. The 24 electrical ports support the 10/100 Mbps Ethernet IEEE 802.3 protocol, and autonegotiating and auto-MDI/MDIX features are provided for simplicity and ease of installation. All 24 ports support IEEE.802.3af Class 1 - 3 based Power over Ethernet (PoE). 2 ports are 10/100/1000 configurable for copper or fiber media for use with multimode or single mode optical fiber, selected by optional SFP modules. These network managed layer 2 switches are optically (1000 BASE-FX) and electrically compatible with any IEEE 802.3 compliant Ethernet devices. Plugand-play design ensures ease of installation, and no electrical or optical adjustments are ever required. The CNGE2FE24MSPoE incorporates LED indicators for monitoring the operating status of the managed switch and network. These units are rack mountable.

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Token Ring Port:

LRE Port:

Bypass:

Modular:

Management Port:

Yes

USB:

Number of PoE (RJ-45) Ports:

Stack Port:

Number of Network (RJ-45) Ports:

Media & Performance

Media Type Supported:

Twisted Pair

Twisted Pair Cable Standard:

Category 5e

Ethernet Technology:

Fast Ethernet
Gigabit Ethernet

Network Technology:

10/100Base-TX
10/100/1000Base-T

I/O Expansions

Number of Total Expansion Slots:

Expansion Slot Type:

SFP

Shared SFP Slot:

Yes

Number of SFP Slots:

Network & Communication

Layer Supported:

Management & Protocols

Manageable:

Yes

Management:

QoS
SNMP v1, v2c, v3
Syslog
VLAN
DHCP
Web Based Management
Telnet
CLI
MIB II
RMON

Memory

Standard Memory:

32 MB

Memory Technology:

DRAM

Flash Memory:

4 MB

Reliability

MTBF:

100000 Hour

Power Description

PoE (RJ-45) Port:

Yes

Power Source:

Power Supply

Redundant Power Supply Supported:

Yes

Physical Characteristics

Form Factor:

Rack-mountable

Height:

1.7"

Width:

17.3"

Depth:

11"

Miscellaneous

Certifications & Standards:

EMI:

FCC Class A
CE EN61000-4-2 (ESD)
CE EN61000-4-3 (RS)
CE EN61000-4-4 (EFT)
CE EN61000-4-6 (CS)
CE EN61000-4-8
CE EN61000-6-2
CE EN61000-6-4
UL
cUL
CE/EN60950-1

IEEE STANDARDS:

802.3 10Base-T Ethernet
802.3u 100Base-TX/100Base-FX
802.3z Gigabit fiber
802.3ab 1000Base-T
802.3x Flow Control and Back Pressure
802.3ad Port trunk with LACP
802.1d Spanning Tree/ IEEE802.1w Rapid Spanning Tree
802.1p Class of Service
802.1q VLAN Tag
802.1x User Authentication (Radius)
802.3af Class 1 - 3 Power over Ethernet
802.1ab LLDP
802.1w

Environmentally Friendly:

Yes

Environmental Certification:

WEEE
RoHS

Country of Origin:

United States

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0845770002485

UPC: 845770002485

EAN: 0845770002485

UNSPSC: 43222612
