Bosch CNGE3FE7MS3 Data Networking

Bosch - ENVIRONMENTALLY HARDENED MANAG ETHERNET SWITCH WITH (7) 10/

Effectively increases available bandwidth on your network
Quickly and easily set up a wired network with 7 networking ports
Built-in power supply to ensure all components are being supplied with accurate voltage
With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
DIN Rail Mountable form factor for your convenience and simplicity of usage
Management capability allows maximum efficiency and with unrestricted control
Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Comes in silver color for a sophisticated and dazzling look

Need a different version? See all Bosch Parts Accessories

Chat Now for Qty Discount

Add to Quote

$2,552.94

Overview

Bosch Parts Accessory Model Overview

Products and parts from Bosch.

Bosch CNGE3FE7MS3 Data Networking Overview

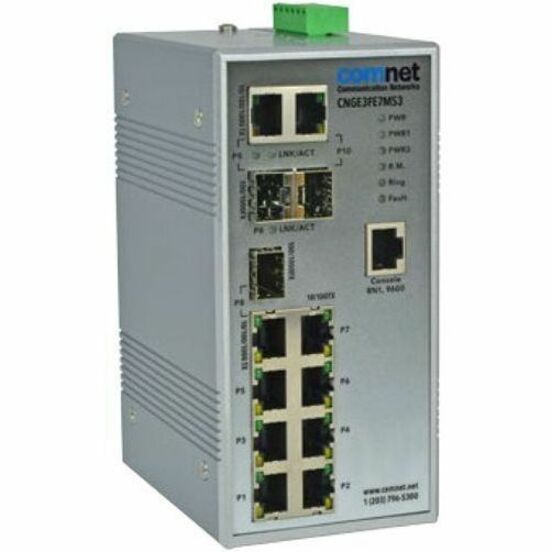

The ComNet CNGE3FE7MS3 Managed Ethernet Switch provides robust transmission of seven (7) 10/100BASE-T(X) and three (3) 10/100/1000T(X) or 100/1000FX combo ports, of gigabit Ethernet data. It is available for use with either conventional CAT-5e copper or optical transmission media. The 7 electrical ports support the 10/100Mbps Ethernet IEEE 802.3 protocol, and auto-negotiating and auto-MDI/MDIX features are provided for simplicity and ease of installation. Three ports are 10/100/1000 configurable for copper or fiber media for use with multimode or single mode optical fiber, selected by optional SFP* modules. These network managed layer 2 switches are optically (100/1000BASE-FX) and electrically compatible with any IEEE 802.3 compliant Ethernet devices. The CNGE3FE7MS3 incorporates LED indicators for monitoring the operating status of the managed switch and network. These units are DIN-rail or wall mountable.

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Network (RJ-45):

Yes

Media & Performance

Media Type Supported:

Twisted Pair
Optical Fiber

Ethernet Technology:

Fast Ethernet
Gigabit Ethernet

Network Technology:

10/100Base-TX
10/100/1000Base-T

I/O Expansions

Number of Total Expansion Slots:

Expansion Slot Type:

SFP

Shared SFP Slot:

Yes

Number of SFP Slots:

Network & Communication

Layer Supported:

Networking Standards:

IEEE 802.3
IEEE 802.3u
IEEE 802.3z
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3ad
IEEE 802.1D
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1w
IEEE 802.1s
IEEE 802.1x
IEEE 802.1ab

Management & Protocols

Manageable:

Yes

Power Description

Input Voltage:

48 V DC

Power Source:

Power Supply

Redundant Power Supply Supported:

Yes

Power Consumption:

12 W

Physical Characteristics

Product Color:

Silver

Form Factor:

DIN Rail Mountable
Wall Mountable

Miscellaneous

Package Contents:

CNGE3FE7MS3 Ethernet Switch
90-264VAC Power Supply

Application/Usage:

Surveillance
Industrial
Factory

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

TAA Compliant:

Yes

Warranty

Limited Warranty:

Lifetime

Item Numbers

UNSPSC: 43222612

Reviews

Q&A

Get help from a Barcoding Expert!

The Bosch CNGE3FE7MS3 Data Networking is also known as CCN-CNGE3FE7MS3
