Bosch CNGE8FX4TX4MS Products

Bosch - MANAGED SWITCH 8 PORT 1000MBPS 4 FIBER (SFP) 4 COPPER

Effectively reduces downtime with improved network performance
Quickly and easily set up a wired network with 4 networking ports
Built-in power supply to ensure all components are being supplied with accurate voltage
Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
Wall Mountable form factor for your convenience and simplicity of usage
Gigabit Ethernet port for ultra-fast network speeds
Twisted Pair media support for efficient and reliable connectivity
32 MB memory makes you productive with its smooth performance

Need a different version? See all Bosch Parts Accessories

Chat Now for Qty Discount

Add to Quote

$2,702.26

Overview

Bosch Parts Accessory Model Overview

Products and parts from Bosch.

Bosch CNGE8FX4TX4MS Products Overview

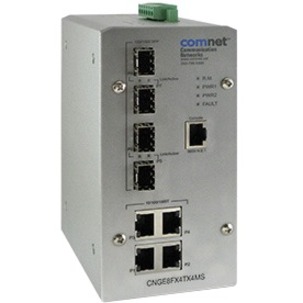

The ComNet™ CNGE8FX4TX4MS Managed Ethernet Switch provides transmission of (4) 100/1000 BASE-TX and (4) 10/100/1000FX combo ports. Unlike most Ethernet switches, these environmentally hardened units are designed for deployment in difficult operating environments, and are available for use with either conventional CAT-5e copper or optical transmission media. Ports 1 - 4 support the 10/100/1000 Mbps Ethernet IEEE 802.3 protocol, and auto-negotiating and auto-MDI/MDIX features are provided for simplicity and ease of installation. Ports 5 - 8 are 10/100/1000 configurable for copper or 100/1000 fiber media for use with multimode or single mode optical fiber without need for configuration, selected by optional SFP modules. These network managed layer 2 switches are optically and electrically compatible with any IEEE 802.3 compliant Ethernet devices. Plug-and-play design ensures ease of installation, and no electrical or optical adjustments are ever required. The CNGE8FX4TX4MS incorporates LED indicators for monitoring the operating status of the managed switch and network.

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Token Ring Port:

LRE Port:

Management Port:

Yes

USB:

Number of Network (RJ-45) Ports:

Port/Expansion Slot Details:

4 x Gigabit Ethernet Network
4 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported:

Twisted Pair
Optical Fiber

Twisted Pair Cable Standard:

Category 5e

Ethernet Technology:

Gigabit Ethernet

Network Technology:

10/100/1000Base-T
1000Base-X

I/O Expansions

Number of Total Expansion Slots:

Expansion Slot Type:

SFP

Shared SFP Slot:

Yes

Number of SFP Slots:

Network & Communication

Layer Supported:

Management & Protocols

Manageable:

Yes

Management:

SNMP v1 v2c, v3
Web Based Management
Telnet
CLI
MIB
RMON
DHCP

Memory

Standard Memory:

32 MB

Flash Memory:

4 MB

Reliability

MTBF:

100000 Hour

Power Description

PoE (RJ-45) Port:

Power Source:

Power Supply

Physical Characteristics

Form Factor:

Wall Mountable
Rail-mountable

Height:

Width:

2.8"

Depth:

4.1"

Miscellaneous

Package Contents:

CNGE8FX4TX4MS Ethernet Switch
DC Plug in Power Supply

Certifications & Standards:

FCC
CE
cUL
C-Tick

IEEE Standards:

802.3 10Base-T Ethernet
802.3u 100Base-TX
802.3ab 1000Base-T
802.3z Gigabit fiber
802.3x Flow Control and Back Pressure
802.3ad Port trunk with LACP
802.1d Spanning Tree/ IEEE802.1w Rapid Spanning Tree
802.1p Class of Service
802.1Q VLAN Tag
802.1x User Authentication (Radius)

EMI:

FCC Part15 Class A
EN61000-6-4
EN61000-6-2
EN61000-4-2 (ESD)
EN61000-4-3 (Radiated RFI)
EN61000-4-4 (Burst)
EN61000-4-5 (Surge)
EN61000-4-6 (Induced RFI)
EN61000-4-8 (Magnetic Field)
EN61000-4-11 (Voltage Dip)
EN61000-3-2 (Harmonics Current)
EN61000-3-3 (Voltage Fluctuation & Flickers)

Safety:

UL508
UL 508 Class 1, Division 2

Stability Testing:

IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)

Environmentally Friendly:

Yes

Environmental Certification:

WEEE
RoHS

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0845770005561

UPC: 845770005561

EAN: 0845770005561

UNSPSC: 43222612
