Bosch COMPAK50M2 Products

Bosch  -  Mini RS232/RS422 Point-to-Poin Transceiver, mm, 1 fiber
  • Meets EIA RS232/422 specifications
  • Distances up to 6 km (3.7 miles)
  • Transparent to data encoding/compatible with major data protocols
  • Point-to-Point topology
  • Data rates up to 115 Kbps (NRZ)
  • Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
  • Voltage transient protection on all power and signal input/ output lines provides protection from power surges and other voltage transient events.
  • Bi-Color (Red/Green) Transmit and Receive LEDs
  • NTCIP compatible
  • Automatic resettable solid-state current limiters
Read More

Need a different version? See all Bosch Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$546.45
Bosch COMPAK50M2 Products
Bosch COMPAK50M2 Products
Bosch COMPAK50M2 Products Bosch COMPAK50M2 Products
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch COMPAK50M2 Products Overview

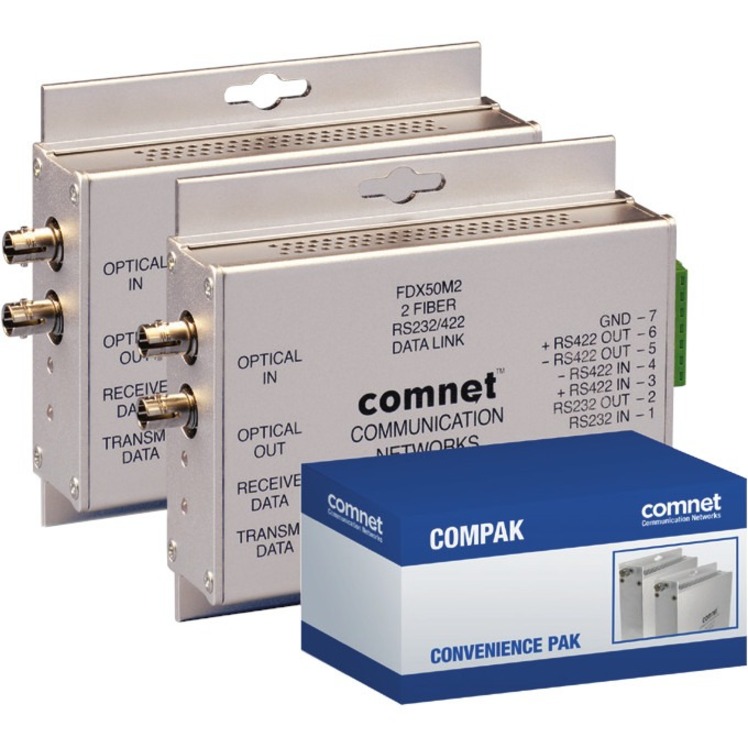

The ComNet™ FDX50M2 data transceivers provide point-to-point transmission of simplex or duplex EIA RS232/RS422 data signals over two multimode optical fibers. The transceivers are transparent to data encoding allowing for broad-range compatibility. Plug-and-play design ensures ease of installation requiring no electrical or optical adjustments. Each transceiver incorporates a bi-color (Red/Green) indicating LED for monitoring proper system operation. The FDX50 has a small footprint and is designed for surface mounting.
Interfaces/Ports
Total Number of Ports:
2
Network (RJ-45):
No
Number of PoE (RJ-45) Ports:
No
Number of PoE+ (RJ-45) Ports:
No
Number of ST Ports:
2
Media & Performance
Media Type Supported:
Optical Fiber
Fiber Mode Supported:
Multi-mode
Fiber Optic Wavelength:
1310 nm
Maximum Distance Supported:
3.73 Mile
Fiber Optic Cable Standard:
62.5/125 µm
Power Description
Power Source:
Power Supply
Power Consumption:
2 W
Plug/Connector Type:
Terminal Block
Frequency:
60 Hz
Physical Characteristics
Form Factor:
  • Surface-mountable
  • Compact
Height:
3.7"
Width:
4.1"
Depth:
1.1"
Miscellaneous
Package Contents:
  • RS232/422 Point-To-Point Data Transceiver
  • 2 × DC Plug in Power Supply, 90-264VAC, 50/60Hz
Application/Usage:
  • Data
  • Audio
  • Network
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0845770005165
UPC: 845770005165
EAN: 0845770005165
UNSPSC: 43201553
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Bosch COMPAK50M2 Products is also known as CCN-COMPAK50M2
