Bosch CWGE28FX4TX24MS Products

Bosch - Managed Switch, 24 10/100/1000 1000Mbps TX/SFP FX Combo Ports

Effectively reduces downtime with improved network performance
Features 24 networking ports to meet the requirements of the most demanding workgroups
Built-in power supply to ensure all components are being supplied with accurate voltage
With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
Rack-mountable form factor for added reliability and dependability
Managed switch provides a reliable foundation for your network
Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters

Need a different version? See all Bosch Parts Accessories

Chat Now for Qty Discount

Add to Quote

$1,720.37

Overview

Bosch Parts Accessory Model Overview

Products and parts from Bosch.

Bosch CWGE28FX4TX24MS Products Overview

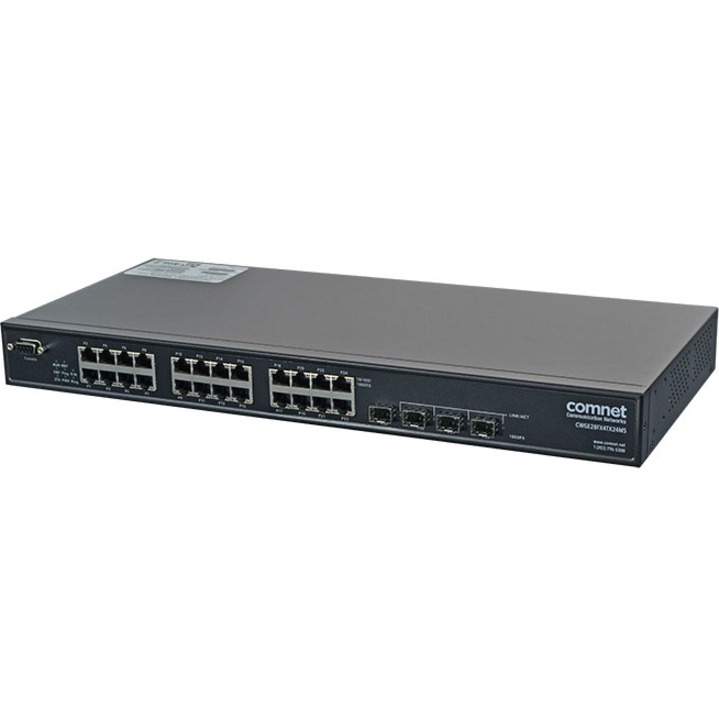

The ComNet™ CWGE28FX4TX24MS Layer 2 Managed 28 Port Ethernet Switch supports twenty-four (24) 10/100/1000BASE-TX ports and four (4) 1000BASE-FX ports of Ethernet data. The four 1000BASE-FX ports are SFP* configurable for fiber type (multimode or single-mode), connector type and distance. The exclusive C-Ring redundant ring feature protects networks from interruptions or temporary malfunctions with its fast recovery technology. The electrical ports support the 10/100/1000 Mbps Ethernet IEEE 802.3 protocol, and auto-negotiating and auto-MDI/MDIX features are included. The CWGE28FX4TX24MS are optically (1000BASE-FX) and electrically compatible with any IEEE 802.3 compliant Ethernet device.

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Token Ring Port:

LRE Port:

Management Port:

Yes

USB:

Stack Port:

Number of Network (RJ-45) Ports:

Port/Expansion Slot Details:

24 x Gigabit Ethernet Network
4 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported:

Twisted Pair
Optical Fiber

Ethernet Technology:

Gigabit Ethernet

Network Technology:

10/100/1000Base-T
1000Base-FX

I/O Expansions

Number of Total Expansion Slots:

Expansion Slot Type:

SFP

Shared SFP Slot:

Yes

Number of SFP Slots:

Network & Communication

Layer Supported:

Management & Protocols

Manageable:

Yes

Management:

SNMP v1/v2c/v3
CLI
VLAN
Telnet
RMON
Syslog
DHCP
Web Based Management

Reliability

MTBF:

100000 Hour

Power Description

PoE (RJ-45) Port:

Power Source:

Power Supply

Physical Characteristics

Compatible Rack Unit:

Form Factor:

Rack-mountable

Height:

1.8"

Width:

17.5"

Depth:

7.9"

Miscellaneous

Package Contents:

(24) 10/100/1000 BASE-TX + (4) 1000BASE-FX Managed Ethernet Switch
Rack-Mount Installation Kit
Console Cable
AC Power Cable

Certifications & Standards:

CE
C-Tick
cUL
EMI FCC Part 15, CISPR (EN55022) Class A
EMS EN61000-4-2
ESD EN61000-4-3
RS EN61000-4-4
EFT EN61000-4-5
Electrical Surge EN61000-4-6
CS EN61000-4-8, EN61000-4-11
Mechanical Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6

IEEE Standards:

802.3 for 10Base-T
802.3u for 100Base-TX and 100Base-FX
802.3z for 1000Base-X
802.3ab for 1000Base-T
802.3x for Flow control
802.3ad for LACP (Link Aggregation Control Protocol)
802.1D for STP (Spanning Tree Protocol)
802.1p for COS (Class of Service)
802.1Q for VLAN Tagging
802.1w for RSTP (Rapid Spanning Tree Protocol)
802.1s for MSTP (Multiple Spanning Tree Protocol)
802.1x for Authentication
802.1AB for LLDP (Link Layer Discovery Protocol)

Environmentally Friendly:

Yes

Environmental Certification:

WEEE
RoHS

Country of Origin:

United States

Warranty

Limited Warranty:

5 Year

Item Numbers

GTIN: 0845770011937, 5712505925010

UPC: 845770011937

EAN: 0845770011937, 5712505925010

UNSPSC: 43222612
