Bosch - Bi-directional Contact Closure Transceiver, mm, 1 fiber

Transmits a single contact closure in one or two directions
Distances up to 69 km (43 miles)
30 VDC, 0.5 amp relay output, normally open
Point-to-Point transmission architecture
Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
Plug-and-play design ensures ease of installation requiring no electrical or optical adjustments.
Relay contact for Carrier Detect (normally closed with carrier present)
Automatic resettable solid-state current limiters
Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
FDC10(M,S)1(A,B) models are housed in a smaller-sized package for stand-alone mounting only, for use in those applications where space may be limited

Need a different version? See all Bosch Parts Accessories

Chat Now for Qty Discount

Add to Quote

$704.98

Overview

Bosch Parts Accessory Model Overview

Products and parts from Bosch.

Bosch FDC10M1B Products Overview

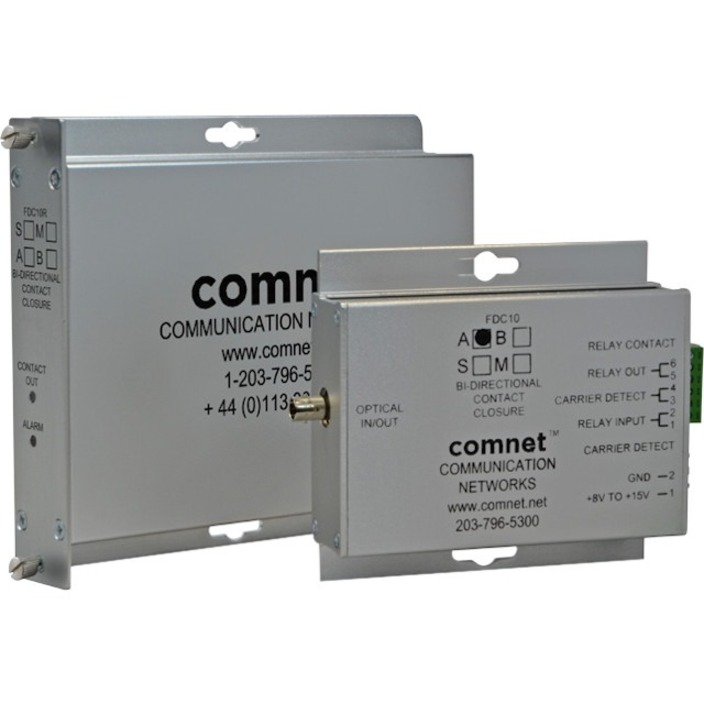

The ComNet™ FDC10 Series bi-directional contact closure transceiver provides bi-directional transmission of contact closure over one multimode or single mode optical fiber. The transceiver has a contact input and a 0.5 amp contact output. The bi-directional contact closure module has two relay outputs and one relay input. One relay output follows the "relay input" at the remote end. When the remote "relay input" is shorted, the local relay output is closed and vice-versa. The second relay output is closed when "carrier" is detected from the remote end, this indicates that the optical fiber is connected and that the remote end has power and is operating.

Detailed Specs

Interfaces/Ports

Total Number of Ports:

Network (RJ-45):

Number of PoE (RJ-45) Ports:

Number of PoE+ (RJ-45) Ports:

Number of ST Ports:

Media & Performance

Media Type Supported:

Optical Fiber

Fiber Mode Supported:

Multi-mode

Fiber Optic Wavelength:

1550 nm
1310 nm

Maximum Distance Supported:

9.94 Mile

Fiber Optic Cable Standard:

62.5/125 µm

Power Description

Power Source:

Power Supply

Power Consumption:

2 W

Plug/Connector Type:

Terminal Block

Frequency:

60 Hz

Physical Characteristics

Form Factor:

Standalone
Surface-mountable

Height:

3.7"

Width:

Depth:

Miscellaneous

Package Contents:

Bi-Directional Contact Closure Transceiver
DC Plug-in Power Supply, 90-264 VAC, 50/60 Hz

Application/Usage:

Audio
Network

Environmentally Friendly:

Yes

Environmental Certification:

WEEE
RoHS

Country of Origin:

United States

TAA Compliant:

Yes

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0845770000856

UPC: 845770000856

EAN: 0845770000856

UNSPSC: 43201553
