Bosch FDX55M28 Products

Bosch - RS232/422 DB25 Repeater, 850NM RTS/CTS Timer + Anti-Streaming

Meets EIA RS232C/D specifications (Simplex or Duplex)
NTCIP compatible
Tested and certified by an independent laboratory for
full compliance with the environmental requirements
(ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/ TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
Robust design assures extremely high reliability in unconditioned roadside environments
User-selectable DTE or DCE interface ensures ease of installation and maximum versatility
Supports Request to Send (RTS) and Clear to Send (CTS) signals
RJ-11 expansion port provides network branching capability by electrically linking co-located transceiver units
Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.

Need a different version? See all Bosch Parts Accessories

Chat Now for Qty Discount

Add to Quote

$1,268.74

Overview

Bosch Parts Accessory Model Overview

Products and parts from Bosch.

Bosch FDX55M28 Products Overview

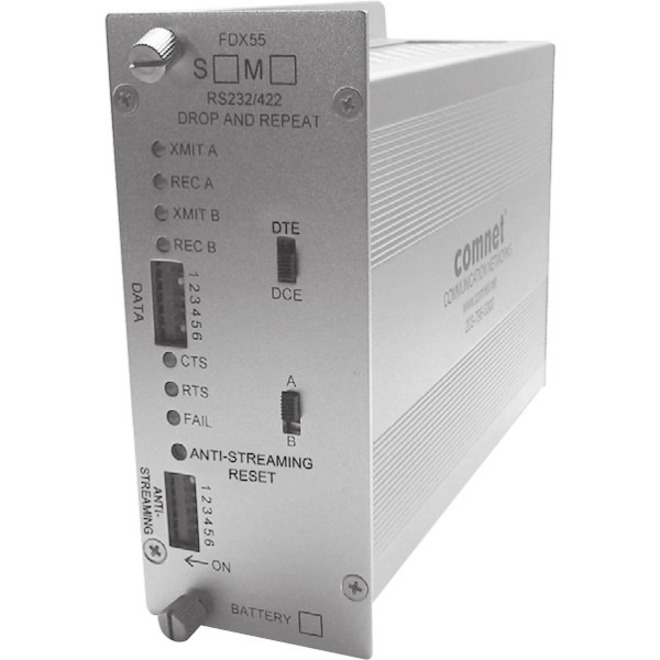

The ComNet™ FDX55 series consists of fully-digital transceiver units designed for implementing simplex or full-duplex RS232 Drop-and-Repeat poll-and-respond traffic signalization/communications data networks utilizing one or two optical fibers. These environmentally-hardened units are ideal for use in unconditioned out-ofplant or roadside installations and the master-configured transceiver unit may be located anywhere within the network, making this equipment ideal for applications involving on-street master controllers with upstream and downstream communication requirements. These units are compatible with the FDX50, FDX51 and FDX52 Series of optical modems, and ComNet model FDX55BE may be used as a cost-effective solution for use as a line-terminating transceiver. Manually resettable anti-streaming is included for unparalleled network protection. Optional battery backup capability provides the highest level of network reliability in the event of a loss of local prime operating power, and maintains continuous communications channel operation. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.

Detailed Specs

Interfaces/Ports

Total Number of Ports:

Network (RJ-45):

Number of PoE (RJ-45) Ports:

Number of PoE+ (RJ-45) Ports:

Number of ST Ports:

Media & Performance

Media Type Supported:

Optical Fiber

Fiber Mode Supported:

Multi-mode

Fiber Optic Wavelength:

850 nm

Maximum Distance Supported:

1.86 Mile

Fiber Optic Cable Standard:

62.5/125 µm

Power Description

Power Source:

Power Supply

Power Consumption:

2.50 W

Plug/Connector Type:

Terminal Block

Frequency:

60 Hz

Physical Characteristics

Form Factor:

DIN Rail Mountable
Rack-mountable
Standalone

Height:

2.2"

Width:

5.3"

Miscellaneous

Package Contents:

Anti-Streaming RS-232/422 Drop-and-Repeat Data Transceiver
DC Plug-in Power Supply, 90-264 VAC, 50/60 Hz

Application/Usage:

Network
Audio
Data

Environmentally Friendly:

Yes

Environmental Certification:

WEEE
RoHS

Country of Origin:

United States

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0845770001709

UPC: 845770001709

EAN: 0845770001709

UNSPSC: 43201553
