Bosch FMM-100DAT2CK-B Security System Products

Bosch  -  MAN DBL ACT TERM KEY BLU
  • Terminal connections
  • Gold-plated alarm contacts for corrosion resistance
  • Surface back box
Read More

Need a different version? See all Bosch Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$86.28
Bosch FMM-100DAT2CK-B Security System Products
Bosch FMM-100DAT2CK-B Security System Products
Bosch FMM-100DAT2CK-B Security System Products Bosch FMM-100DAT2CK-B Security System Products
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch FMM-100DAT2CK-B Security System Products Overview

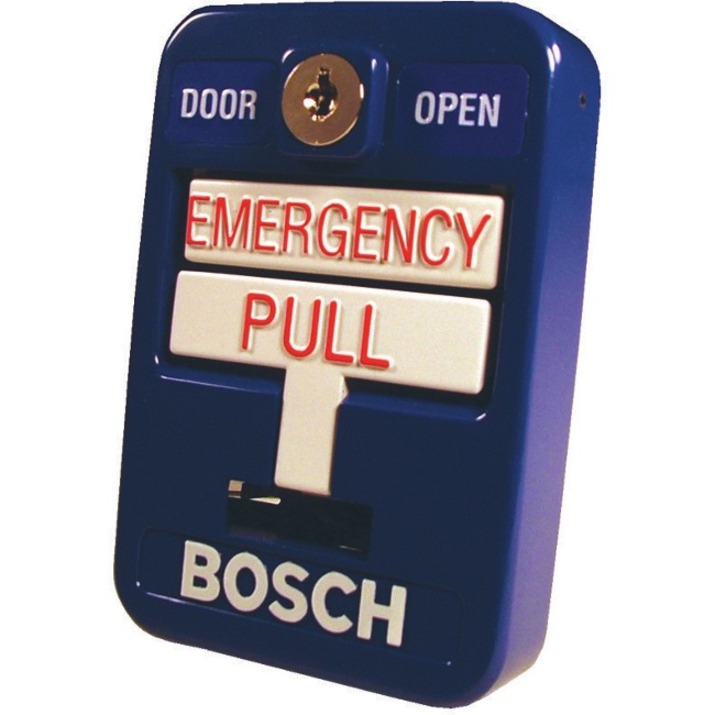

The FMM-100DAT2CK-B is a high-quality, metal manual station in blue. This dual-action manual station comes with a key lock and contains gold-plated contacts to resist corrosion.

Functions

Operation
With the dual-action configuration the upper bar on the front of the manual station rotates inward allowing the activation bar to be grasped and operated by a single hand. When the lower bar on the front of the manual station (the activation bar) is pulled, it latches open and is easily visible from 50 ft (15 m). Reset the activation bar by opening the manual station with the key and placing the activation bar in its normal upright position. An optional scored acrylic break rod is available.
Technical Information
Print/Message:
  • Emergency Pull
  • Door Open
Gang Type:
Single Gang
Pull Station Type:
Double Action
Features:
  • Corrosion Resistance
  • Surface Mount
  • Wall Mountable
  • Flush Mount
  • Key Lock
Power Description
Input Voltage:
  • 30 V DC
  • 120 V AC
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
150°F (65.6°C)
Physical Characteristics
Product Color:
Blue
Product Material:
Die-cast Metal
Height:
4.8"
Width:
3.3"
Depth:
1.1"
Miscellaneous
Package Contents:
  • FMM-100DAT2CK-B Dual-Action, Die-Cast Metal Manual Station (Blue)
  • 1 x Key (1358 key)
  • 1 x Acrylic Break Rod
  • 1 x Hardware pack
  • 1 x Literature pack
Application/Usage:
  • Fire Alarm
  • Outdoor
Certifications & Standards:
  • ADA Standard
UL:
  • UNIU: Boxes, Non-Coded (UL38)
  • UNIU7: Boxes, Non-Coded Certified for Canada (cULus)
Country of Origin:
China
Item Numbers
GTIN: 0782695118863
UPC: 782695118863
EAN: 0782695118863
