Bosch FMM-100SAT2CK-Y Access Control Equipment

Bosch  -  MAN SGL ACT TERM KEY YEL
  • Terminal connections
  • Gold-plated alarm contacts for corrosion resistance
  • Surface- or flush-mounted back boxes
  • Optional labels
Read More

Need a different version? See all Bosch Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$92.14
Bosch FMM-100SAT2CK-Y Access Control Equipment
Bosch FMM-100SAT2CK-Y Access Control Equipment
Bosch FMM-100SAT2CK-Y Access Control Equipment Bosch FMM-100SAT2CK-Y Access Control Equipment
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch FMM-100SAT2CK-Y Access Control Equipment Overview

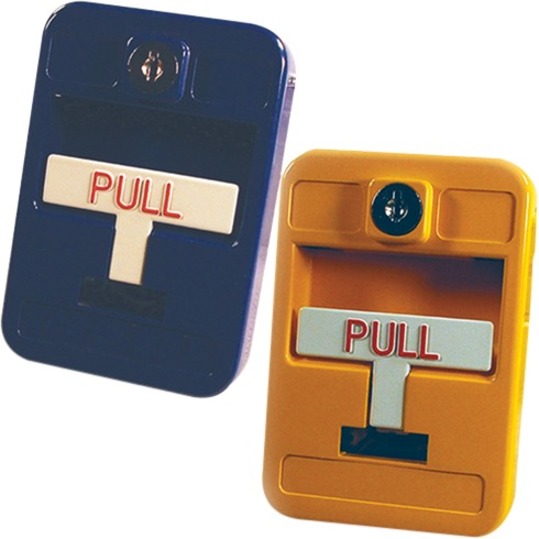

The FMM-100 family are versatile, high-quality, metal manual stations in blue, green, or yellow. These single-action manual stations have two single-pole, double-throw (SPDT) contacts that are individually field-configurable for normally-open (NO) or normallyclosed (NC) operation. They come with a key lock and contain gold-plated contacts to resist corrosion.

Functions

Operation
When the bar on the front of the manual station is pulled, it latches open and is easily visible from 50 ft (15 m). Reset the activation bar by opening the manual station with the key and placing the activation bar in its normal upright position. An optional scored acrylic break rod is available.
Technical Information
Print/Message:
Pull
Gang Type:
Single Gang
Pull Station Type:
Single Action
Features:
  • Corrosion Resistance
  • Surface Mount
  • Flush Mount
  • Key Lock
  • Single Pole
  • Resettable
  • Wall Mountable
Power Description
Input Voltage:
  • 30 V DC
  • 120 V AC
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
150°F (65.6°C)
Physical Characteristics
Product Color:
Yellow
Product Material:
Die-cast Metal
Height:
4.8"
Width:
3.3"
Depth:
1.1"
Miscellaneous
Package Contents:
  • FMM-100SAT2CK-Y Single-Action Manual Station (Yellow)
  • 1 x Key (1358 key)
  • 1 x Acrylic Break Rod
  • 1 x Hardware pack
  • 1 x Literature pack
  • 1 x Label pack
Application/Usage:
  • Fire Alarm
  • Outdoor
Certifications & Standards:
  • ADA Standard

UL:

  • UNIU: Boxes, Non-coded (UL38)
  • UNIU7: Boxes, Non-coded Certified for Canada (ULC-S528-M91)
Country of Origin:
China
Item Numbers
GTIN: 0782695125038
UPC: 782695125038
EAN: 0782695125038
