Bosch FTA2C1S1 Products

Bosch  -  Simplex Audio + Contact Closur Transmitter, sm, 1 fiber
Add to Quote
$812.88
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch FTA2C1S1 Products Overview

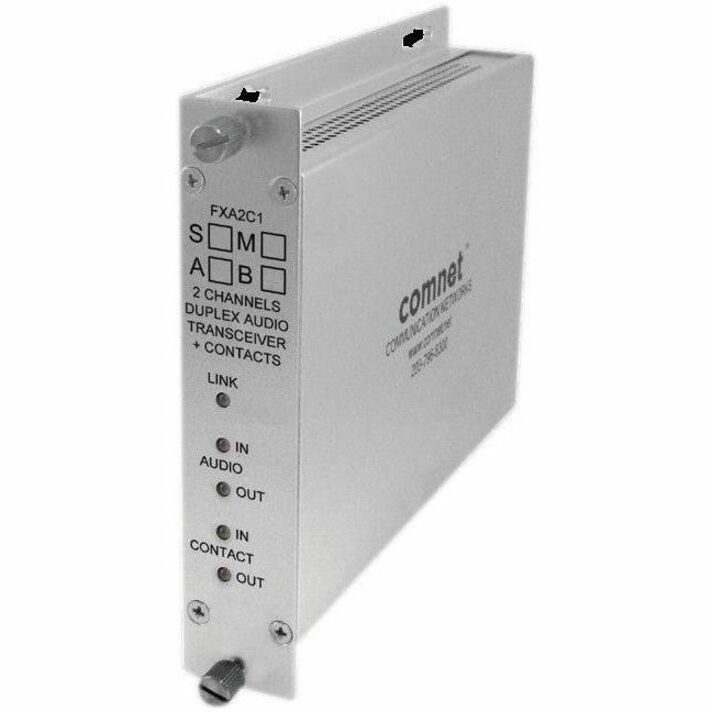

The ComNet™ FTA/FRA2C1 Series audio multiplexer provides the transmission of two audio signals and one contact closure over one multimode or single mode optical fiber. A bidirectional model, FXA2C1(M,S)1, is also available. The modules use 24-bit 96kHz sample rate digital encoding for superior transmission of balanced line-level audio. Plugand-play design ensures ease of installation and no electrical or optical adjustments are required. Bi-color LED indicators confirm operational status. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack mounted.

  • Two simplex or duplex audio channels
  • One simplex or duplex contact closure
  • 24-bit 96kHz digitally encoded transmission
  • 20Hz - 20kHz audio bandwidth 600Ω audio input impedance
  • No in-field electrical or optical adjustments required
  • Transmits balanced line-level audio up to +8.5dBm
  • Distances up to 48km (30mi) without repeaters
  • Automatic resettable fuses on all power lines
  • Bi-color LED status indicators confirm operating status
  • Hot-swappable rack modules
  • Interchangeable between stand-alone or rack mount use - ComFit
  • Lifetime Warranty

APPLICATIONS

  • Point-to-Point Audio Communication
  • Push-to-Talk Applications
Technical Information
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Maximum Operating Distance:
157480.31 ft
Media & Performance
Media Type Supported:
Optical Fiber
Physical Characteristics
Form Factor:
Rack-mountable
Miscellaneous
Package Contents:
  • 2-Channel Audio Transmitter
  • DC Plug-in Power Supply, 90-264 VAC, 50-60 Hz
  • Power Supply
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0845770010411
UPC: 845770010411
EAN: 0845770010411
UNSPSC: 43222619
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Bosch FTA2C1S1 Products is also known as CCN-FTA2C1S1
