Bosch FVR1021M1 Products

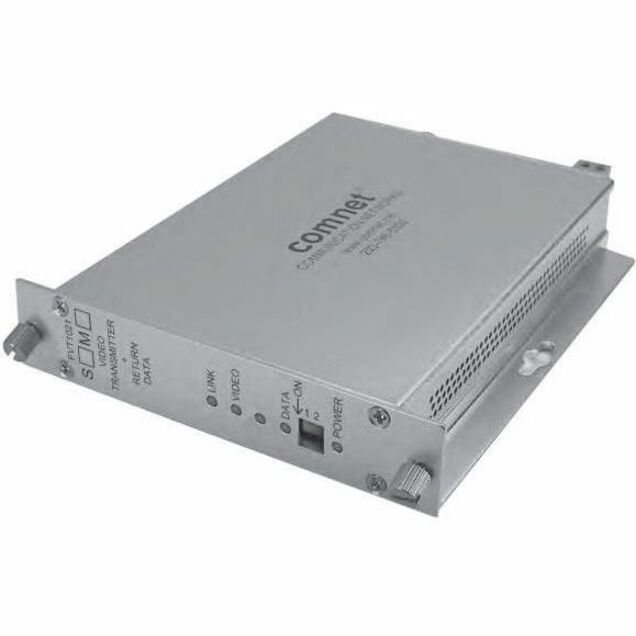

The ComNet™ FVT/FVR1021 series video transmitter/ receiver and data transmitter/receiver supports the simultaneous transmission of short-haul quality 10-bit digital video and return data over one multimode or single mode optical fiber. This module is universally compatible with major CCTV camera manufacturers and supports RS-232 and RS-422 data interfaces. The FVT/FVR1021 allows the user to set the data through a switch on the unit. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rackmounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.

Features

• 10-bit Digital Video Transmission
• Compatible with all NTSC, PAL, or SECAM CCTV camera systems
• Full Color Compatibility
• Exceeds RS-250C Short-Haul quality
• Supports RS-232 and RS-422 data interfaces
• Supports Manchester and bi-phase data
• No In-field electrical or optical adjustments
• Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
• Integrated WDM for greater product reliability
• Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events.
