Bosch GCS24-CW Products

The Bosch GCS24-CW Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Bosch  -  STRB 24V 15-110CD CEIL W
  • Field-selectable candela options (15 cd, 30 cd, 75 cd, 95 cd, and 115 cd)
  • Separate horn and strobe functions; silence horn while strobes remain flashing
  • Strobe, horn, or both can be synchronized using the AVS Series Synchronization Modules
  • Silence horn while strobes remain flashing
  • Switch selection for high or low dBA, high or low frequency, and for Temporal Code 3, Chime, or Whoop tones
Read More

Need a different version? See all Bosch Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Bosch GCS24-CW Products
Bosch GCS24-CW Products
Bosch GCS24-CW Products Bosch GCS24-CW Products
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch GCS24-CW Products Overview

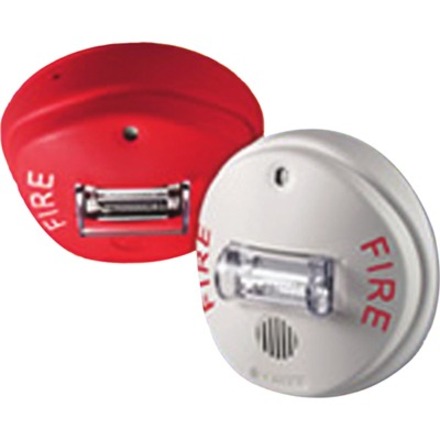

The Commander4 Series Ceiling-mount Strobes and Horn Strobe combinations offer dependable audible and visual alarms, low current draw, and a minimum flash rate of 1 Hz regardless of the input voltage. These models offer field-selectable options of 15 cd, 30 cd, 75 cd, 95 cd, 115 cd, and 150 cd. The horns provide a selection of high or low dBA and a selection of 2400 Hz (remote signaling) or a low frequency broad band from 1500 Hz to 3000 Hz mechanical sounding (evacuation) tone where doors could be a problem. These models are easily field-changeable from Temporal Code 3 to a continuous tone.
These devices come standard with a 4 in. (10.2 cm) mounting plate, and incorporate the popular SuperSlide feature that allows you to easily test for supervision.
Technical Information
Alarm Type:
Visual
Light Output:
  • 15 cd
  • 30 cd
  • 75 cd
  • 95 cd
  • 115 cd
Form Factor:
Ceiling Mountable
Features:
  • Synchronization
  • Candela Switch
Product Functions:
Alarm
Power Description
Input Voltage:
24 V DC
Power Source:
DC Supply
Physical Characteristics
Product Color:
White
Application/Usage:
Fire
Diameter:
6"
Miscellaneous
Package Contents:
  • Commander4 GC Security Strobe Light
  • Mounting Plate
Certifications & Standards:
UL
Item Numbers
GTIN: 0700217184776
UPC: 700217184776
EAN: 0700217184776
UNSPSC: 39111706
