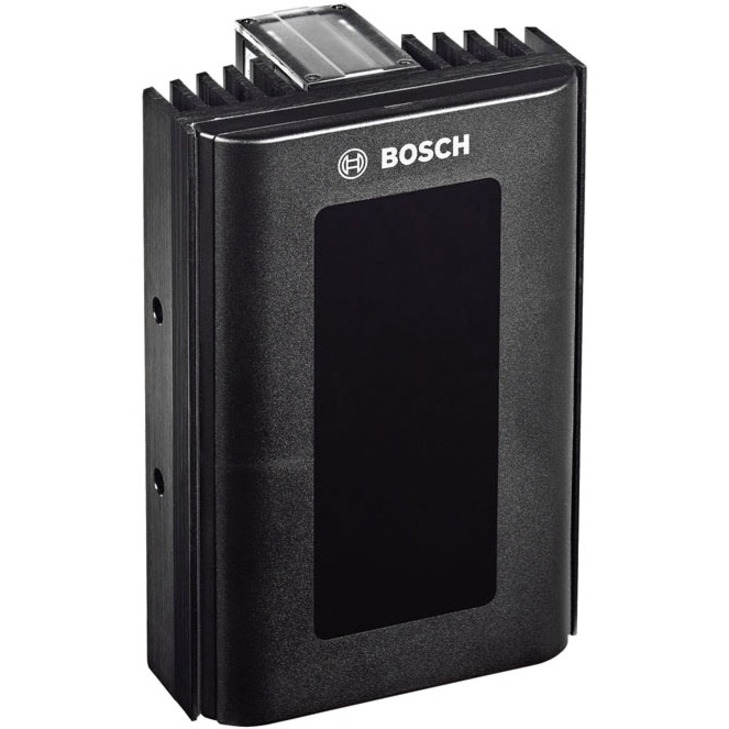

Bosch IIR-50940-LR Security Camera

• Anodized Aluminum
• Polycarbonate

Power

• Power supply x 12 to 32 VDC or 24 VAC ±10%
• Power consumption x 39 W

Optical

• Wavelength x 850 nm or 940 nm
• IR control x Adjustable IR intensity (10% to 100%)
• Day/night switch x Photocell, sensitivity adjustable (20 lx to 70 lx)
• Beam angles x 10°, 20°, 30°, 60°, 80°, and 95°

Range 850 nm

• Beam pattern diffuser x Achievable Distance* HFOV
• 10º x 268 m (881 ft) 47 m (154 ft)
• 20° x 183 m (640 ft) 65 m (212 ft)
• 30º x 134 m (440 ft) 72 m (236 ft)
• 60° x 85 m (280 ft) 99 m (324 ft)
• 80° x 61 m (200 ft) 102 m (336 ft)
• 95º x 43 m (140 ft) 93 m (306 ft)

Range 940 nm

• Beam pattern diffuser x Achievable Distance* HFOV
• 10º x 165 m (540 ft) 29 m (95 ft)
• 20° x 98 m (320 ft) 34 m (113 ft)
• 30º x 79 m (260 ft) 42 m (139 ft)
• 60° x 49 m (160 ft) 56 m (185 ft)
• 80° x 37 m (120 ft) 61 m (202 ft)
• 95º x 24 m (80 ft) 53 m (175 ft)

Mechanical

• Housing x Robust anodized aluminum extrusion, black
• Front window x Polycarbonate high transmittance (vandal-resistant) with self-cleaning technology
• Mount x Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench)
• Cable x 3 m (9 ft)
• Bracket dimensions(W x H x D) x 110 x 125 x 35 mm (4.33 x 4.92 x 1.38 in)
• Bracket weight x 0.2 kg (0.44 lbs)

Environmental

• Operation Temperature Range x -50 °C to +50 °C (-58 °F to +122 °F)
