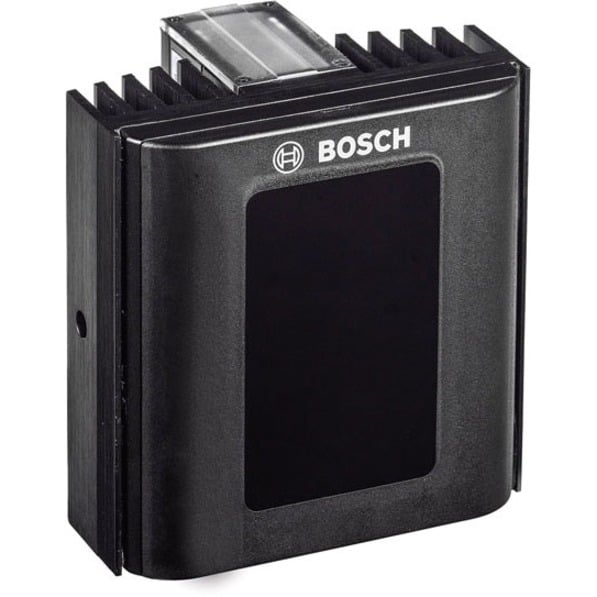

Bosch IIR-50940-MR Infrared Illuminator

• Black - Housing

• Polycarbonate
• Anodized Aluminum

Power

• Power supply x 12 to 32 VDC or 24 VAC ±10%
• Power consumption x 26 W

Optical

• Wavelength x 850 nm or 940 nm
• IR control x Adjustable IR intensity (10% to 100%)
• Day/night switch x Photocell, sensitivity adjustable (20 lx to 70 lx)
• Beam angles x 10°, 20°, 30°, 60°, 80°, and 95°

Range 850 nm

• Beam pattern diffuser x Achievable Distance* HFOV
• 10º x 220 m (722 ft) 38 m (126 ft)
• 20° x 150 m (492 ft) 53 m (174 ft)
• 30º x 110 m (361 ft) 59 m (193 ft)
• 60° x 70 m (230 ft) 81 m (265 ft)
• 80° x 50 m (164 ft) 84 m (275 ft)
• 95º x 35 m (115 ft) 76 m (251 ft)

Range 940 nm

• Beam pattern diffuser x Achievable Distance* HFOV
• 10º x 135 m (443 ft) 24 m (77 ft)
• 20° x 80 m (262 ft) 28 m (93 ft)
• 30º x 65 m (213 ft) 35 m (114 ft)
• 60° x 40 m (131 ft) 46 m (152 ft)
• 80° x 30 m (98 ft) 50 m (165 ft)
• 95º x 20 m (66 ft) 44 m (143 ft)

Mechanical

• Housing x Robust anodized aluminum extrusion, black
• Front window x Polycarbonate high transmittance (vandal-resistant) with self-cleaning technology
• Mount x Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench)
• Cable x 3 m (9 ft)
• Bracket dimensions(W x H x D) x 110 x 125 x 35 mm (4.33 x 4.92 x 1.38 in)
• Bracket weight x 0.2 kg (0.44 lbs)

Environmental

• Operation Temperature Range x -50 °C to +50 °C (-58 °F to +122 °F)

• Indoor
• Outdoor
• Surveillance

• CE-EMC: EN 61547 (Lighting-Immunity)
• EN 55015 (Lighting-Emission)
• EN 62493( Lighting EMF)
• EN 50130-4 (Alarm EMC)
• CE-LVD: EN-60598-1 (Luminaires-General)
• EN-60598-2-1 (Luminaires)
• LED: EN 62471 Risk group 2 (LED safety)
• Environmental: IEC / EN 60529 IP66
• IEC / EN 62262 IK09
• EN50130-5 Class IV (Alarm-environmental)
• EN 50581 RoHS,
• USA cULus: UL 2108 Low Voltage Lighting System
• UL 8750 Light Emitting Diode (LED) equipment for use in lighting systems CSA C22.2 No. 250.0-08 Luminaires FCC, Class B
• AUS: RCM AS / NZS CISPR 22 Class B
• UL
• IP66
