Bosch IIR-50940-SR Accessory

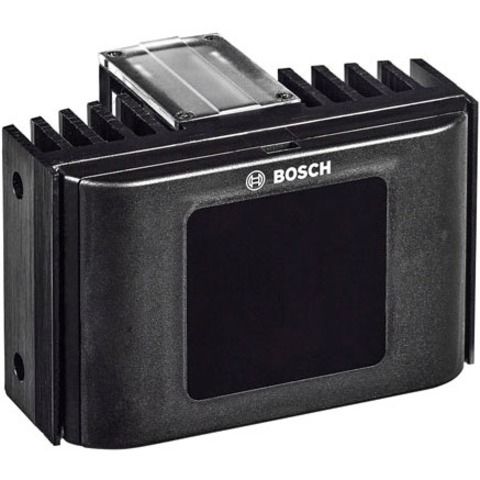

Bosch - Bosch IR Illuminator 5000 SR - Adjustable - Vandal Resistant - Anodized Aluminum, Polycarbonate - Black

Need a different version? See all Bosch Parts Accessories

Chat Now for Qty Discount

Add to Quote

$329.43

Overview

Bosch Parts Accessory Model Overview

Products and parts from Bosch.

Bosch IIR-50940-SR Accessory Overview

Integrated adjustable photocell
Adjustable IR intensity
Interchangeable beam pattern diffusers to match beam to camera
Telemetry input and photocell output for external switching
Self-cleaning lens coating technology

Detailed Specs

Technical Information

Device Supported:

Surveillance Camera

Features:

Adjustable Light Intensity
Adjustable Built-in Photocell
Self-cleaning Lens Coating
Interchangeable Lens
Robust

Physical Characteristics

Product Color:

Black

Product Material:

Anodized Aluminum
Polycarbonate
Stainless Steel

Durability:

Vandal Resistant

Height:

2.8"

Width:

4.3"

Depth:

Weight (Approximate):

1.65 lb

Miscellaneous

Additional Information:

Power

Power supply: 12 to 32 VDC or 24 VAC ±10%
Power consumption: 13 W

Optical

Wavelength: 850 nm or 940 nm
IR control: Adjustable IR intensity (10% to 100%)
Day/night switch: Photocell, sensitivity adjustable (20 lx to 70 lx)
Beam angles: 10°, 20°, 30°, 60°, 80°, and 95°

Range 850 nm

Beam pattern diffuser: Achievable Distance, HFOV
10°: 156 m (510 ft) , 27 m (89 ft)
20°: 106 m (348 ft) , 37 m (123 ft)
30°: 78 m (255 ft) , 42 m (137 ft)
60°: 49 m (162 ft) , 57 m (187 ft)
80°: 35 m (116 ft) , 59 m (195 ft)
95°: 25 m (81 ft) , 54 m (177 ft)

Range 940 nm

Beam pattern diffuser Achievable Distance, HFOV
10°: 95 m (313 ft) , 17 m (55 ft)
20°: 57 m (186 ft) , 20 m (65 ft)
30°: 46 m (151 ft) , 25 m (81 ft)
60°: 28 m (93 ft) , 33 m (107 ft)
80°: 21 m (70 ft) , 36 m (117 ft)
95°: 14 m (46 ft) , 31 m (101 ft)

Mechanical

Mount: Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench)
Housing x Robust anodized aluminum extrusion, black
Front window x Polycarbonate high transmittance (vandal-resistant) with self-cleaning technology
Cable: 3 m (9 ft)
Bracket dimensions (W x H x D): 110 x 125 x 35 mm (4.33 x 4.92 x 1.38 in)
Bracket weight: 0.2 kg (0.44 lbs

Environmental

Operation Temperature Range: -50 °C to +50 °C (-58 °F to +122 °F)

Application/Usage:

Surveillance

Certifications & Standards:

UL
IP66

Country of Origin:

United Kingdom

Item Numbers

GTIN: 0800549815420, 8717332544240

UPC: 800549815420

EAN: 0800549815420, 8717332544240

UNSPSC: 46111703
