Features:
Impact Resistant
Bosch Parts Accessory Model Overview
Products and parts from Bosch.

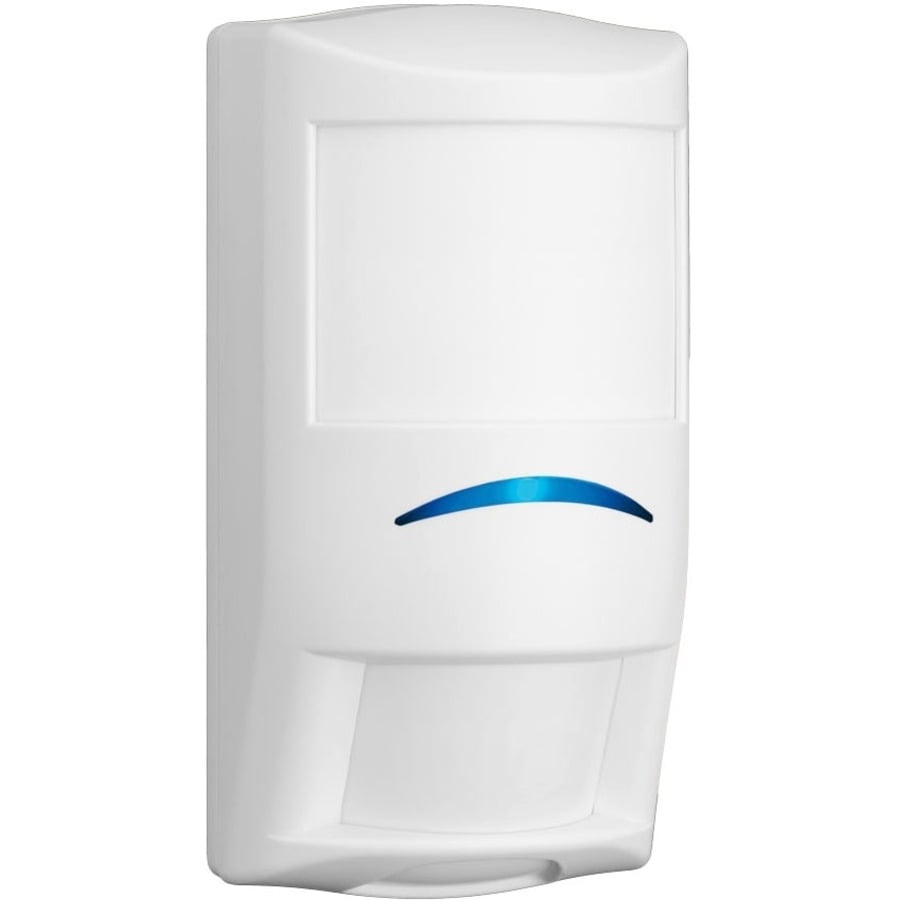

Bosch ISC-PDL1-WC30G Products Overview
The Professional Series TriTech Curtain Detectors are exceptionally suited for commercial indoor applications. Sensor data fusion technology ensures that the detector sends alarm conditions based on precise information. The powerful combination of unique features in the Professional Series delivers superior catch performance and virtually eliminates false alarms.
The self-locking two-piece enclosure, built-in bubble level, flexible mounting height, and three optional mounting brackets simplify installation and reduce service time.
The self-locking two-piece enclosure, built-in bubble level, flexible mounting height, and three optional mounting brackets simplify installation and reduce service time.
Technical Information
Physical Characteristics
Product Color:
White
Product Material:
ABS Plastic
Form Factor:
Wall Mountable
Height:
5"
Width:
2.7"
Depth:
2.3"
Miscellaneous
Additional Information:
- 30 m (100 ft) x 2.6 m (8.5 ft)
- 2.1 m to 3 m (7 ft to 10 ft) mounting height, no adjustments required, optional lookdown masking
- EN50131-2-4 Grade 2 compliant
- Sensor data fusion technology
- Range adaptive radar and active white light suppression
- Voltage (Operating): 9 VDC to 15 VDC
- Current (Maximum): < 26 mA with alarm, trouble, and LEDs active.
- Current (Standby): 18 mA at 12 VDC
- Blue LED for TriTech+ alarms
- Yellow LED for microwave detection
- Red LED for PIR detection
Application/Usage:
- Indoor
- Alarm System
Certifications & Standards:
- EN 50131-5 Environmental Class II,50102 IK04,60529 IP41
- FCC
- RCM
- CE
- EN5013 1 EN 50131-2-4: 2008, Grade 2
- INCERT B-509-0052/f [-WC30G]
- UL [-WC30G]
- AFNOR 2820200005 [-WC30G]
- AFNOR 2820200005 [-WC30H]
- INTYG Nr11-780 [-WC30G]
- ANATEL 1772-11-1855 [-WC30G]
Environmentally Friendly:
Yes
Country of Origin:
China
Item Numbers
GTIN:
0190403415713, 0800549578523
UPC:
190403415713, 800549578523
EAN:
0190403415713, 0800549578523
UNSPSC:
39121900
Get help from a Barcoding Expert!
The Bosch ISC-PDL1-WC30G Products is also known as
BOS-ISCPDL1WC30G
