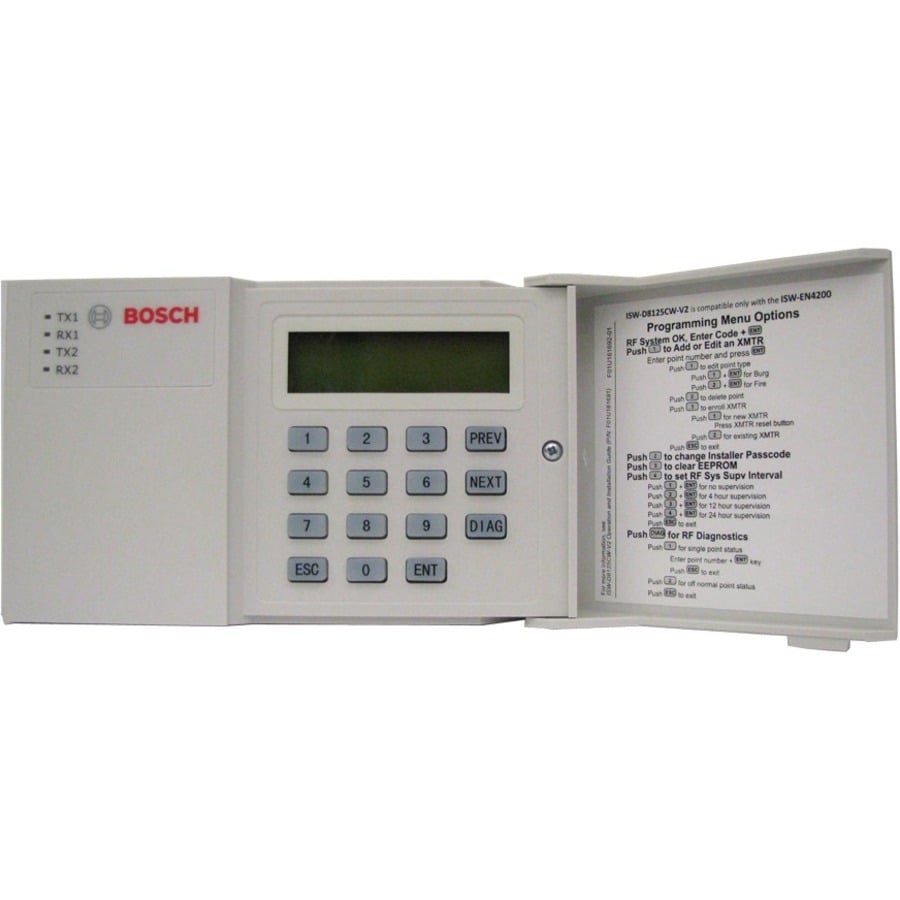

Bosch ISW-D8125CW-V2 Wireless Transmitter / Receiver Overview
The ISW-D8125CW-V2 Inovonics EchoStream Interface Module is an interface module and keypad that connects Inovonics EchoStream receivers, repeaters, and wireless transmitters to compatible Bosch Security Systems, Inc. control panels. Use the ISW-D8125CW-V2 in systems spanning large distances to avoid inconvenient hard-wire installations. Place radio frequency (RF) transmitters anywhere within the maximum range. Move the RF transmitters as needed without costly re-wiring.
System overview
Bosch Security Systems, Inc. control panels connect to hard-wired points and to wireless RF points at the same time. To add RF points, connect a Inovonics EchoStream EN4200 Serial Receiver to the ISW-D8125CW-V2 Inovonics EchoStream Interface Module. Connect the ISW-D8125CW-V2 to the control panel's Zonex 1 or Zonex 2 terminals and to Aux Power.
A compatible control panel supports up to two ISW-D8125CW-V2 wireless interface connections. Connect the first ISW-D8125CW-V2 to Zonex 1, and the second to Zonex 2. Each ISW-D8125CW-V2 Inovonics EchoStream Interface Module supports up to 117 supervised RF points.
System overview
Bosch Security Systems, Inc. control panels connect to hard-wired points and to wireless RF points at the same time. To add RF points, connect a Inovonics EchoStream EN4200 Serial Receiver to the ISW-D8125CW-V2 Inovonics EchoStream Interface Module. Connect the ISW-D8125CW-V2 to the control panel's Zonex 1 or Zonex 2 terminals and to Aux Power.
A compatible control panel supports up to two ISW-D8125CW-V2 wireless interface connections. Connect the first ISW-D8125CW-V2 to Zonex 1, and the second to Zonex 2. Each ISW-D8125CW-V2 Inovonics EchoStream Interface Module supports up to 117 supervised RF points.
Technical Information
Power Description
Input Voltage:
14 V DC
Environmental Conditions
Minimum Operating Temperature:
32°F (0°C)
Maximum Operating Temperature:
149°F (65°C)
Physical Characteristics
Height:
1.2"
Width:
6.5"
Depth:
4"
Weight (Approximate):
9.60 oz
Miscellaneous
Package Contents:
- ISW-D8125CW-V2 Inovonics Echostream Interface Module
- 1 x Literature - Installation Guide
Additional Information:
- Bosch Security Systems, Inc. control panel compatibility
- Up to two ISW-D8125CW-V2 connections for each control panel; one per Zonex Bus
- User-friendly menus and backlit display
- Liquid crystal display (LCD) shows two lines by 16 characters
- Internal keypad
- Diagnostic functions for troubleshooting system RF transmitters
Compatibility:
- Bosch EN4200 Serial Receiver
- Bosch EN5040-T High-Power Repeater
- All Inovonics EchoStream transmitters
- G Series All versions of the D9412GV3 and D9412GV2,v6.30 or higher of the D9412G
- All versions of the D7412GV3 and D7412GV2;v6.30 or higher of the D7412G
- All versions of the D7212GV3 and D7212GV2;v6.41 or higher of the D7212G
Item Numbers
UNSPSC:
46171600
