Bosch LC2-PC30G6-8 Products

Bosch - 30 Watt 8" coax ceiling loudspeaker

Handles up to 30 W of RMS power
Hear low subs and soaring vocals with a frequency range of sound from 50 Hz-20 kHz
333 Ohm impedance extracts maximum power so you will get more output from your speakers

Need a different version? See all Bosch Parts Accessories

Chat Now for Qty Discount

Add to Quote

$464.31

Overview

Bosch Parts Accessory Model Overview

Products and parts from Bosch.

Bosch LC2-PC30G6-8 Products Overview

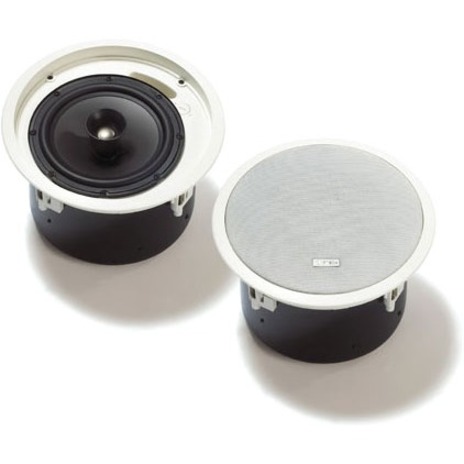

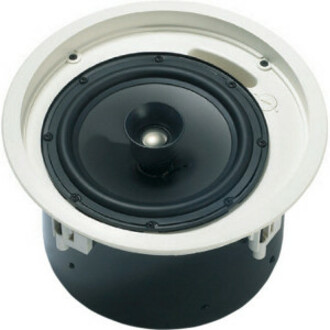

The LC2-PC30G6-8L is a 8-inch two-way Premium-sound Ceiling Loudspeaker which provides, wide dispersion, high efficiency, high maximum output, ease-of-installation, low profile install space and wide-range reproduction of music and voice.

Detailed Specs

Technical Information

Crossover Type:

2-way

RMS Output Power:

30 W

PMPO Output Power:

75 W

Woofer Driver Size:

Woofer Driver Material:

Polypropylene

Tweeter Driver Size:

Tweeter Driver Material:

Titanium

Minimum Frequency Response:

50 Hz

Maximum Frequency Response:

20 kHz

Impedance:

333 Ohm

Sound Pressure Level:

106 dB

Physical Characteristics

Product Color:

White

Product Material:

Ceramic
Fiber
Acrylonitrile Butadiene Styrene (ABS)
Zinc Plated
Steel

Tweeter Material:

Titanium

Woofer Material:

Polypropylene

Form Factor:

Ceiling Mountable

Depth:

7.01"

Diameter:

11.8"

Weight (Approximate):

11.02 lb

Miscellaneous

Package Contents:

LC2-PC30G6-8L Premium-sound Ceiling Loudspeaker 30W
1 x 272 mm (10.75 in.) Circular Cut-out Template
1 x Tile bridge / C-ring
1 x Paint Shield
1 x Installation Instruction

Certifications & Standards:

BS 5839-8
EN 60849
CE
IEC 268-5
EN 60065
UL94V0

Item Numbers

GTIN: 0800549173087

UPC: 800549173087

EAN: 0800549173087

UNSPSC: 52161512
