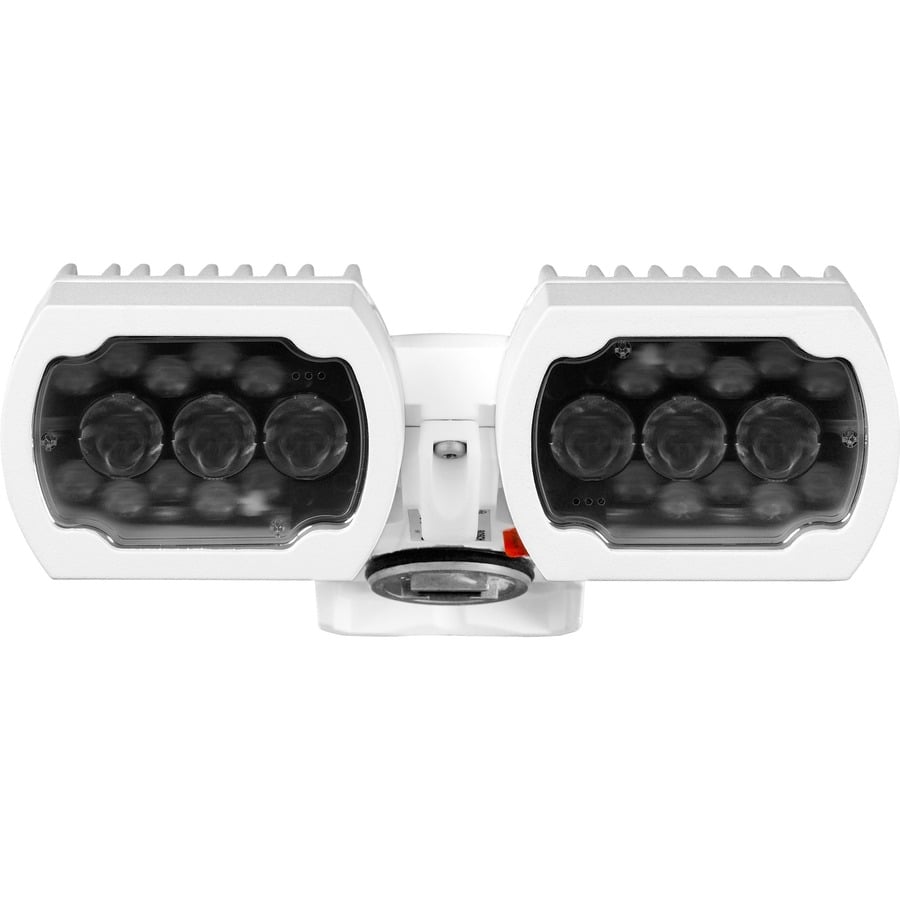

Bosch MIC-ILW-400 Accessory

• Polycarbonate
• Aluminum Die Cast

IR Array

• Narrow x Medium Wide
• Number of LEDs x 12 4 4
• Wavelength x 850 nm 850 nm 940 nm
• Vertical Beam Angle x 15° FWHM 26° FWHM 45° FWHM
• Horizontal Beam Angle x 16° FWHM 28° FWHM 47° FWHM
• White light Array
• Number of LEDs x 6
• Color Temperature x 5600-6300K
• Vertical Beam Angle x 15° FWHM
• Horizontal Beam Angle x 32° FWHM
• Light intensity (3m) x 1000 lx
• IR Distance measurements, 850 nm
• MIC IP starlight 7100i x MIC IP ultra 7100i
• Detection x 550 m (1804 ft) 300 m (984 ft)
• Classification x 450 m (1476 ft) 250 m (820 ft)
• Recognition x 150 m (492 ft) 150 m (492 ft)
• Identification x 100 m (328 ft) 75 m (246 ft)

Electrical

• Power Consumption x 30 W (provided by the camera)

Environmental

• Operating Temperature x -40 °C to +65 °C (-40 °F to +149 °F)
• Cold Start-up Temperature x -40 °C (-40 °F)(Requires 60-minute warm-up prior to operation.)
• Storage Temperature x -60 °C to +70 °C (-76 °F to +158 °F)
• Humidity x 0-100%
• Wind Load x 209 km/h (130 mph) (sustained)(Gusts up to 290 km/h (180 mph)) Camera + installed illuminator accessory: Coefficient of Drag: 1.370Effective Projected Area (EPA): 0.089 m² (0.96 ft²) illuminator accessory only: Effective Projected Area (EPA): 0.019 m² (0.20 ft²)
• Vibration x NEMA TS2 Section 2.2.8 Vibration - 5-30 Hz, (0.5G)
• Shock x IEC 60068-2-27, Half Sine Impulse, 6ms, 40G NEMA TS 2 Section 2.2.9 Shock (Impact) Test Half Sine Impulse 11 ms, 10G
• Ingress Protection x IEC 60529, IP68, Type 6P (when attached to camera)
• External Mechanical Impact (IK Code or Impact rating) x IEC 62262, IK10 (when attached to a MIC camera)

Construction

• Construction Material x Cast aluminum with polycarbonate windows
• Standard Finish x Corrosion-resistant, powder coat paint, sand finish
• Color x White (RAL 9010)
