Bosch NDE-8503-RXT Security Camera

The Bosch NDE-8503-RXT Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Bosch  -  FLEXIDOME IP starlight 8000i Fixed dome 4MP HDR x 12-40 mm PTRZ IP66
  • Wireless or remote configuration and commissioning with the Project Assistant app. Pan, Tilt, Roll and Zoom (PTRZ) to set the camera to the required field of view, without having to touch the camera or lens
  • Starlight X technology with 1/1.8" 4.1MP sensor for next level low-light performance with maximum detail
  • HDR X - High Dynamic Range to see every detail in both bright and dark areas of the scene without motion artefacts
  • Built-in Intelligent Video Analytics with object detection to trigger alerts and quickly retrieve data with the highest levels of reliability
  • Camera Trainer to train the camera to recognize user-specified target objects for both moving and non-moving objects
Read More
Add to Quote
Bosch Parts Accessory Model Overview
Products and parts from Bosch.

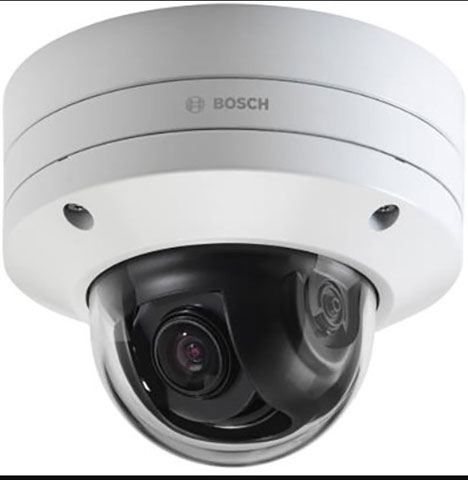

Bosch NDE-8503-RXT Security Camera Overview

The FLEXIDOME IP starlight 8000i - 4MP X series camera offers a 1/1.8" sensor, starlight X and HDR X technology at 4.1MP resolution. It provides the perfect balance between high resolution and extreme low-light sensitivity with starlight X technology, ensuring highly detailed images even in the most challenging situations.
HDR X enables the camera to capture video with a wide dynamic range across different light levels and without motion artefacts on moving objects. Fast moving objects are easily captured with frame rates of up to 60 frames per second at the same 4.1MP resolution.
The camera's remote commissioning functionality makes sure installation and commissioning can be done in very little time. Using a PC or a mobile device with the Bosch Project Assistant app, you can pan, tilt, roll and zoom (PTRZ) and point the camera to the required field of view with a single click - without ever having to touch the camera or lens.

Functions | Full Remote Commissioning
Installing a professional IP video surveillance camera has never been so easy. In fact, as an installer, you'll never want to go back to the old methods of installing cameras again. We've simplified the installation and commissioning stages to such a degree that they can be done in very little time.
With the FLEXIDOME IP starlight 8000i camera's remote commissioning functionality there's no need to go up and down ladders. Using a PC or a mobile device with the Bosch Project Assistant app, roll and zoom (PTRZ) and point the camera to the required field of view with a single click - without ever having to touch the camera or lens. Wireless or remote configuration and commissioning can also be done at a later stage once all cameras have been installed. Simply connect the Bosch Project Assistant app, available for iOS, Windows or Android, Video - FLEXIDOME IP starlight 8000i - 4MP X series wirelessly to the camera. Or connect to the camera remotely via the network using the camera's web interface or the Bosch Configuration Manager.

Fast performance
The 60 frames per second mode provides for optimum performance in fast action scenes and makes sure no critical data is lost. In combination with the high 4.1MP resolution, it allows for high detail video capture of fast moving objects while at the same time providing situational awareness.

Starlight X - Next level starlight performance
Starlight X technology combines the latest high performance, large pixel sensors, optics, improved image processing and noise suppression, resulting in a 5.5x improved sensitivity compared to the standard starlight camera

Technical Information
Recording Formats:
HD
HD Recording:
Yes
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
  • Color
  • Monochrome
Field of View:
Wide: 36.8° x 20.3° (H x V) Tele: 12.8° x 7.3° (H x V)
Effective Camera Resolution:
4 Megapixel
Video
Video Formats:
  • H.265
  • H.264
  • MJPEG
Maximum Video Resolution:
2688 x 1520
Maximum Frame Rate:
60 fps
Lens
Lens Type:
Zoom
Minimum Focal Length:
12 mm
Maximum Focal Length:
40 mm
Lens Included:
Yes
Optical Zoom:
3.3x
Exposure
Shortest Shutter Speed:
1/15000 Second
Longest Shutter Speed:
1/25 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
24 V AC
Physical Characteristics
Mount Type:
Surface Mount
Form Factor:
Dome
Durability:
  • Impact Resistant
  • Water Resistant
  • Dust Resistant
Product Color:
Signal White
Height:
5.8"
Depth:
6.9"
Weight (Approximate):
5.07 lb
Environmental Conditions
Minimum Operating Temperature:
-58°F (-50°C)
Maximum Operating Temperature:
140°F (60°C)
Operating Humidity:
100%
Miscellaneous
Features:
  • Day/Night
  • Region of Interest
  • Cross Line Detection
  • Noise Reduction
  • Privacy Masking
  • Automatic Defog
  • Tamper Detection
  • Motion Detection
  • Face Detection
  • PTZ
  • Wide Dynamic Range
  • SD Card Local Storage
  • Automatic White Balance
Package Contents:
  • Fixed Dome 4MP HDR X 12-40mm PTRZ IP66
  • 1 x T-20 Security Torx Bit
  • 1 x Quick Installation Guide
  • 1 x Rubber Grommet For The Ethernet Cable
  • 1 x Network Patch Cable 50 cm
  • 1 x 10-Pin I/O Connector
  • 1 x 2-Pin Power Connector
  • 1 x Cable Conduit For Side Entry
  • 1 x Washer For Cable Conduit
  • 1 x Adapter Plate For Cable Conduit (Ø 3/4" / M25)
  • 1 x Adapter Plate For Cable Conduit (Ø 1/2" / M20)
Impact Protection Rating:
IK10+
Ingress Protection Rating:
IP66
Environmentally Friendly:
Yes
TAA Compliant:
Yes
NDAA Compliant:
Yes
Item Numbers
UNSPSC: 46171610
