Bosch NDM-7702-AL Security Camera

Bosch Autodome IP Cameras - Fixed dome 12MP 3.7-7.7 mm IP66 / IK10, IR, Integrated MIC

Network camera - Helps achieve high-quality video results
7.70 mm maximum focal length for dependable identification distances with better coverage
2.1x optical zoom for bringing the subject closer for maximum surveillance efficiency
Up to 98 ft of night vision
Infrared night vision type consumes very little electrical power and provides evidentiary quality night-time surveillance video
Varifocal lens type to ensure maximum surveillance dependability and optimal performance
Day/Night feature for better reliance and usability
Wired connectivity technology delivers exceptional performance to offer maximum usability

Need a different version? See all Bosch Parts Accessories

Chat Now for Qty Discount

Add to Quote

$2,220.31

Overview

Bosch Parts Accessory Model Overview

Products and parts from Bosch.

Bosch NDM-7702-AL Security Camera Overview

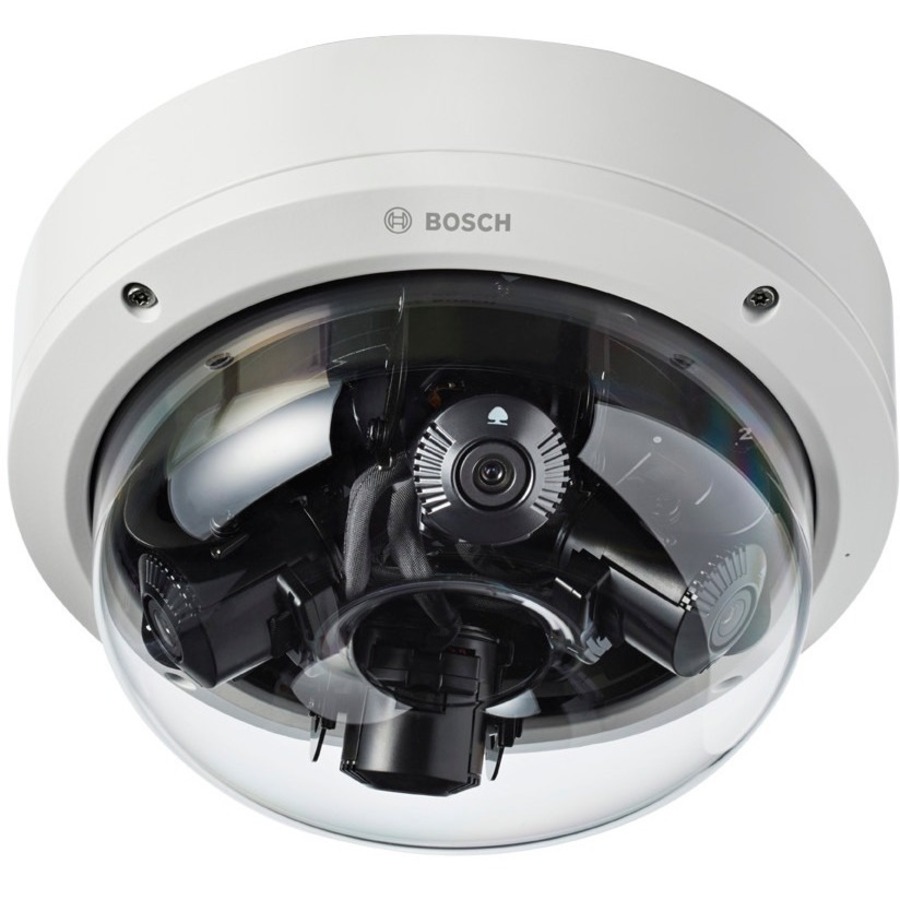

The new FLEXIDOME multi 7000i and FLEXIDOME multi 7000i IR* are intelligent multi-directional cameras that combine four independent camera sensors, 3.3-7.7mm AVF lenses with a total resolution of 12 to 20 MP. They provide the ideal solution for wide area coverage like traffic intersections and building corners, where detailed insights of a scene are a must. What's more? The solution is highly flexible and convenient: although the solution houses four independent camera sensors, it requires only a single network connection, a single IP address and a single Video Management System license.** Each imager capitalizes on the Bosch IVA and Camera Trainer technologies utilizing the built-in Artificial Intelligence, taking data usage to a whole new level.

Detailed Specs

Technical Information

Night Vision:

Yes

Night Vision Distance:

98 ft

Night Vision Type:

Infrared

Display & Graphics

Effective Camera Resolution:

12 Megapixel

Number of Sensors:

Video

Maximum Frame Rate:

30 fps

Lens

Lens Type:

Varifocal

Minimum Focal Length:

3.70 mm

Maximum Focal Length:

7.70 mm

Lens Included:

Yes

Lens Mount Type:

Integrated

Optical Zoom:

2.1x

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Power Description

Input Voltage:

24 V AC

Physical Characteristics

Form Factor:

Dome

Environmental Conditions

Minimum Operating Temperature:

-58°F (-50°C)

Maximum Operating Temperature:

131°F (55°C)

Miscellaneous

Features:

Day/Night
Built-in Microphone
Built-in Infrared Illuminator

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP66

Item Numbers

GTIN: 0800549981699

UPC: 800549981699

EAN: 0800549981699

UNSPSC: 46171610

Reviews

Q&A

Get help from a Barcoding Expert!

The Bosch NDM-7702-AL Security Camera is also known as BOS-NDM7702AL
