Recording Formats:
HD
HD Recording:
Yes
Bosch Parts Accessory Model Overview
Products and parts from Bosch.

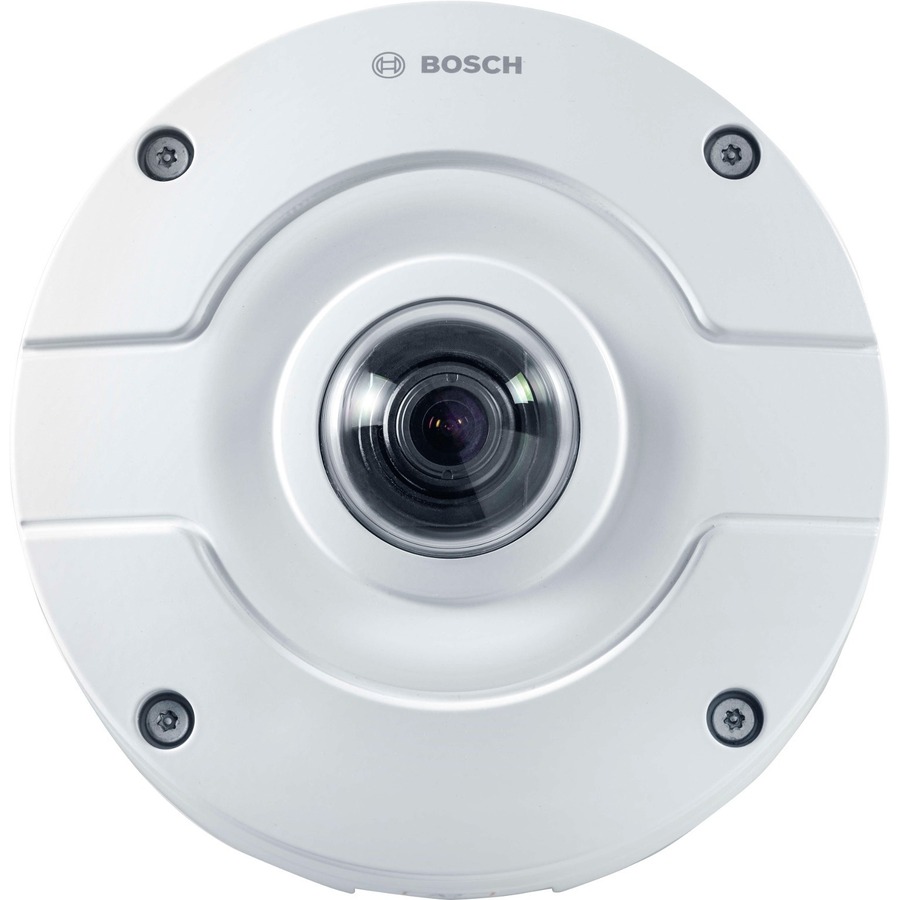

Bosch NDS-7004-F180E Security Camera Overview
The FLEXIDOME IP panoramic 7000 is an outdoor use camera. The 12MP sensor operating at 30 fps gives a full panoramic surveillance with complete area coverage, fine details and high speeds. The camera offers full situational awareness and simultaneous EPTZ views in high resolution.
Versions
The 360° version of the camera, when mounted centrally on a pole or under an eave, gives complete surround coverage without blind spots. The 180° version has a higher effective resolution and is ideal for wall mounting in perimeter surveillance by obtaining a seamless 180º coverage.
Dewarping
The lens captures a circular image. Our dewarping software transforms this circular image into several different distortion-free rectangular views. To facilitate system integration, you can choose edge dewarping inside the camera or client-side dewarping on an external platform.
The freely available Video Security Client from Bosch provides advanced client-side dewarping features.
System overview
Advantages of panoramic surveillance
Panoramic surveillance offers full 180° or 360° coverage of the designated area. Because our panoramic cameras cover the full area, they provide complete situational awareness and are ideally suited to following movement in one continuous sweep.
These panoramic cameras will considerably augment the functionality of any high-end surveillance system especially when coupled with Intelligent Video Analytics, for example, for people counting or complex rule-based alarm triggering.
Intelligent Video Analytics continuously monitors the full image circle so you still receive alarms even if you are zoomed-in on a particular region.
Versions
The 360° version of the camera, when mounted centrally on a pole or under an eave, gives complete surround coverage without blind spots. The 180° version has a higher effective resolution and is ideal for wall mounting in perimeter surveillance by obtaining a seamless 180º coverage.
Dewarping
The lens captures a circular image. Our dewarping software transforms this circular image into several different distortion-free rectangular views. To facilitate system integration, you can choose edge dewarping inside the camera or client-side dewarping on an external platform.
The freely available Video Security Client from Bosch provides advanced client-side dewarping features.
System overview
Advantages of panoramic surveillance
Panoramic surveillance offers full 180° or 360° coverage of the designated area. Because our panoramic cameras cover the full area, they provide complete situational awareness and are ideally suited to following movement in one continuous sweep.
These panoramic cameras will considerably augment the functionality of any high-end surveillance system especially when coupled with Intelligent Video Analytics, for example, for people counting or complex rule-based alarm triggering.
Intelligent Video Analytics continuously monitors the full image circle so you still receive alarms even if you are zoomed-in on a particular region.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
- Color
- Monochrome
Effective Camera Resolution:
12 Megapixel
Video
Video Formats:
- MJPEG
- H.264
Maximum Video Resolution:
3648 x 2160
Lens
Lens Type:
Fixed
Maximum Focal Length:
2.10 mm
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
- Pendant Mount
- Wall Mount
- Ceiling Mount
- Surface Mount
Form Factor:
Dome
Product Color:
Signal White
Height:
4.3"
Diameter:
6.9"
Weight (Approximate):
4.54 lb
Miscellaneous
Environmentally Friendly:
Yes
TAA Compliant:
Yes
NDAA Compliant:
Yes
Item Numbers
GTIN:
0800549934442
UPC:
800549934442
EAN:
0800549934442
UNSPSC:
46171610
Get help from a Barcoding Expert!
The Bosch NDS-7004-F180E Security Camera is also known as
BOS-NDS7004F180E
