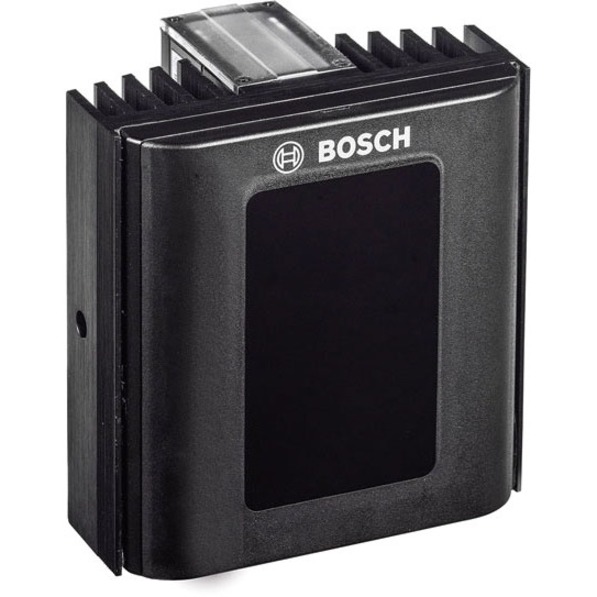

Bosch NIR-50940-MRP Security Camera

Bosch  -  IR ILLUMINATOR 940NM MEDIUM RANGE, PoE+
  • Integrated adjustable photocell
  • Adjustable IR intensity
  • Interchangeable beam pattern diffusers to match beam to camera
  • Telemetry input and photocell output for external switching
  • Self-cleaning lens coating technology
Read More

Need a different version? See all Bosch Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$798.26
Bosch NIR-50940-MRP Security Camera
Bosch NIR-50940-MRP Security Camera
Bosch NIR-50940-MRP Security Camera Bosch NIR-50940-MRP Security Camera
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch NIR-50940-MRP Security Camera Overview
The network infrared illuminator provides covert or semi-covert lighting for medium-range indoor and outdoor surveillance applications. IR illumination dramatically improves night-time imaging, and reduces noise and bit rates.

The set of interchangeable diffuser lenses means that beam patterns can be selected that match your application to provide accurately illuminated scenes. The self-cleaning window reduces maintenance requirements.

Specifically designed for energy efficient operation, the illuminator can be powered directly from Powerover-Ethernet (PoE+) for faster, flexible, cost effective installations.

System overview

Energy efficient surface-mount high-power LEDs deliver maximum illumination with reduced power consumption. Advanced electronic control circuitry delivers improved thermal management, long life and low cost of ownership. A pressure equalization valve prevents thermal expansion and pressure cycling. Additional functions include Eco and boot power modes, a tamper/shock sensor, and an integrated web interface for easy set-up and adjustment.
Technical Information
Device Supported:
  • Surveillance Camera
  • Network Camera
Features:
  • Low Power Consumption
  • LED Illumination
  • PoE
  • Easy to Use
  • Surface Mount
  • Self-cleaning Lens Coating
  • Robust
  • Night Vision
  • Integrated Web Interface
  • Adjustable Built-in Photocell
  • Adjustable Light Intensity
  • Interchangeable Lens
  • Electronic Protection
  • Thermal Protection
  • Infrared Tamper
Physical Characteristics
Product Color:
Black
Color Details:
  • Black - Housing
Product Material:
  • Polycarbonate
  • Anodized Aluminum
  • Stainless Steel
Durability:
Vandal Resistant
Height:
4.5"
Width:
4.3"
Depth:
3"
Weight (Approximate):
2.30 lb
Miscellaneous
Additional Information:

Power

  • Power supply x Power-over-Ethernet (PoE+) (IEEE 802.3at compliant)
  • Power consumption x 26 W

Optical

  • Wavelength x 850 nm or 940 nm
  • IR control x Adjustable IR intensity (0% to 100%)
  • Day/night switch x Photocell, sensitivity adjustable (20 lx to 70 lx)
  • Beam angles x 10° (circular), 20°, 30°, 60°, 80°, and 95° (eliipticals)

Range 940 nm

  • Beam pattern diffuser x Achievable Distance* HFOV
  • 10º x 135 m (443 ft) 24 m (77 ft)
  • 20° x 80 m (262 ft) 28 m (93 ft)
  • 30º x 65 m (213 ft) 35 m (114 ft)
  • 60° x 40 m (131 ft) 46 m (152 ft)
  • 80° x 30 m (98 ft) 50 m (165 ft)
  • 95º x 20 m (66 ft) 44 m (143 ft)

Mechanical

  • Housing x Robust anodized aluminum extrusion, black
  • Front window x Polycarbonate high transmittance (vandal-resistant) with self-cleaning technology
  • Mount x Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench)
  • Cable x 1m with connector
  • Bracket dimensions(W x H x D) x 110 x 125 x 35 mm (4.33 x 4.92 x 1.38 in.)
  • Bracket weight x 0.2 kg (0.44 lbs)

Environmental

  • Operation Temperature Range x -50 °C to +50 °C (-58 °F to +122 °F)
Application/Usage:
  • Surveillance
  • Indoor
  • Outdoor
Certifications & Standards:
  • AUS: RCM AS / NZS CISPR 22 Class B

CE-EMC:

  • EN 55024 (IT equipment - Immunity) EN 55032 (IT equipment - emissions)
  • EN 61547 (Lighting-Immunity)
  • EN 55015 (Lighting-Emission)
  • EN 62493( Lighting EMF)
  • EN 50130-4 (Alarm EMC)

Safety

  • CE-LVD:
    • EN-60598-1 (Luminaires-General)
    • EN-60598-2-1 (Luminaires)
  • LED: EN 62471 Risk group 2 (LED safety)

Environmental:

  • IEC / EN 60529 IP66
  • IEC / EN 62262 IK09
  • EN50130-5 Class IV (Alarm-environmental)
  • EN 50581

USA cULus:

  • UL 2108 Low Voltage Lighting Systems
  • UL 8750 Light Emitting Diode (LED) equipment for use in lighting systems
  • CSA C22.2 No. 250.0-08 Luminaires
  • FCC, Class B
Environmentally Friendly:
Yes
Country of Origin:
United Kingdom
Item Numbers
GTIN: 0800549815505, 8717332544325
UPC: 800549815505
EAN: 0800549815505, 8717332544325
UNSPSC: 46111703
