Bosch NPD-5004-POE Security Camera

Bosch - PoE FOUR-PORT MIDSPAN 15.4W 110/240 AC

Need a different version? See all Bosch Parts Accessories

Chat Now for Qty Discount

Add to Quote

$295.58

Overview

Bosch Parts Accessory Model Overview

Products and parts from Bosch.

Bosch NPD-5004-POE Security Camera Overview

This power injector allows an existing Ethernet infrastructure to be enhanced for use with PoE cameras.

System overview

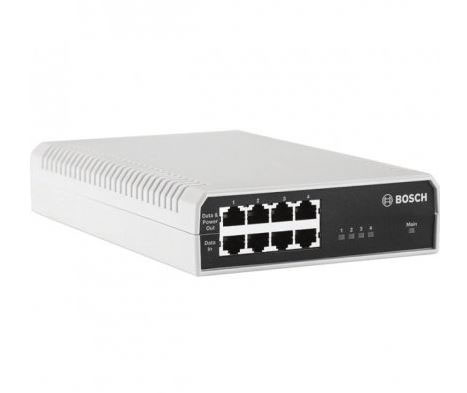

The NPD-5004-POE four-port power injector can supply four individual PoE cameras with power.

Functions

The injector converts the AC input power to a +48 VDC power supply which is then provided to the cameras via the Ethernet cable. They support up to 10/100/1000 Mbps pass-through data rates. Each injector provides up to 15.4 W per port. The PoE midspan injector unit can be easily mounted on a shelf, wall or ceiling

Detailed Specs

Power Description

Input Voltage:

120 V AC
230 V AC

Maximum Output Voltage:

48 V DC

Minimum Input Current:

400 mA

Maximum Input Current:

1 A

Minimum Frequency:

50 Hz

Maximum Frequency:

60 Hz

Maximum Output Power:

15 W

Interfaces/Ports

Input Ports:

4 x Gigabit Ethernet

Output Ports:

4 x Gigabit Ethernet

Physical Characteristics

Form Factor:

External

Mount Type:

Shelf/Wall/Ceiling-mountable

Height:

1.3"

Width:

2.1"

Length:

5.5"

Weight (Approximate):

1.37 lb

Miscellaneous

Package Contents:

NPD-5004-POE Midspan PoE Injector
Power Cord

Compatibility:

PoE Cameras

Certifications & Standards:

FCC Part 15, Class B
EN 60950
EN 55022 class B
EN 55024
IEEE 802.3af

Environmentally Friendly:

Yes

Country of Origin:

Philippines

Item Numbers

GTIN: 0800549777384, 5713697579937

UPC: 800549777384

EAN: 0800549777384, 5713697579937

UNSPSC: 39121004
