Bosch RFUN-A Accessory

The Bosch RFUN-A Accessory has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Bosch  -  UNIVERSAL TRANSMITTER (with DOOR WINDOW CON

Need a different version? See all Bosch Parts Accessories
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Bosch RFUN-A Accessory
Bosch RFUN-A Accessory
Bosch RFUN-A Accessory Bosch RFUN-A Accessory

Bosch Parts Accessory Model Overview

Products and parts from Bosch.

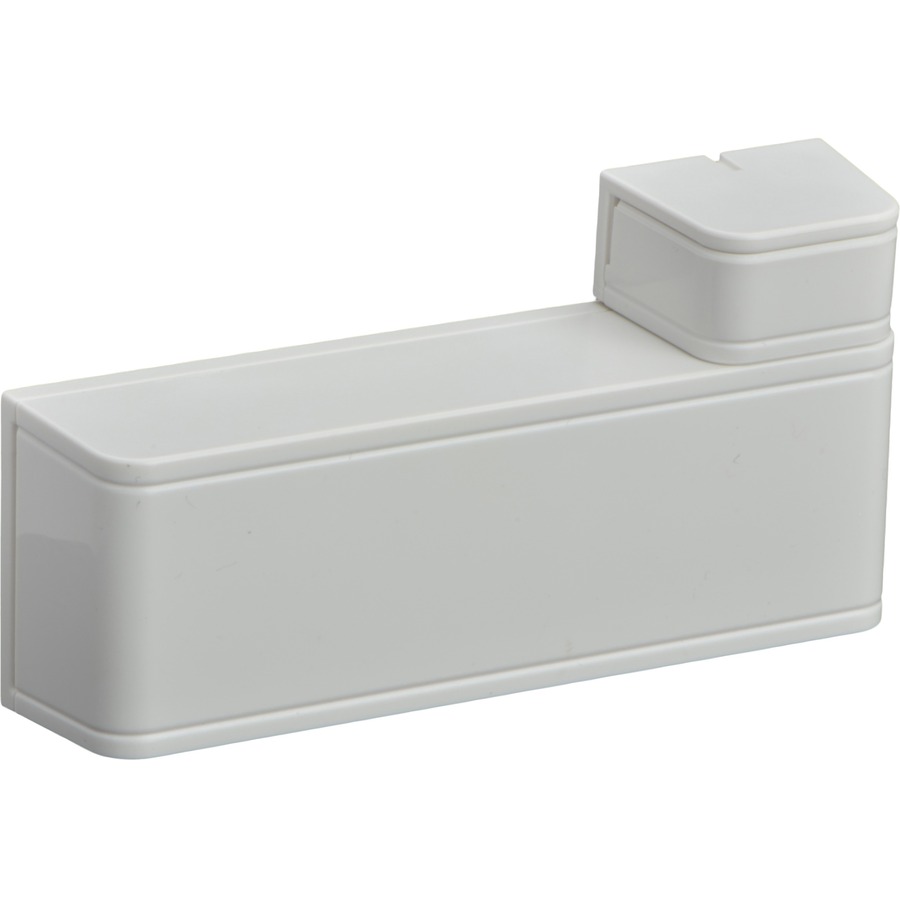

Bosch RFUN-A Accessory Overview
  • Single alarm loop input can be configured for use with virtually any Normally Open or Normally Closed external detector
  • Integrated magnetic reed switch contact
  • Supervised for low-battery, cover-tamper, and removal from mounting surface tamper conditions.
  • Operational for up to 5 years using a single CR123A Lithium battery.
RADION wireless from Bosch provides the range, scalability and exceptional battery life required to ensure reliable performance and superior quality. Advanced diagnostics and multiple device enrollment options make installation and maintenance simple and cost effective. With a complete line of peripherals, RADION provides the flexibility for virtually any application requirement.
Physical Characteristics
Form Factor:
  • Door Mount
  • Window Mount
Height:
1.3"
Width:
3.3"
Depth:
0.8"
Miscellaneous
Package Contents:
  • 1 x RADION Universal Transmitter
  • 1 x Lithium Battery (CR123A)
  • 1 x Hardware Pack
  • 1 x Installation Guide
Additional Information:
  • Power/Voltage: One CR123A Lithium battery, 3VDC
  • Battery life: Up to 5 years
  • Temperature: Functional range: -10?C to +49?(+14?F to +120?F)
  • UL only: 0?C to +49?C (+32?F to+120?F)EN 50130-5 Class II only: -10?Cto 40?C (+14?F to 104?F
  • Environment Complies with EN50130-5 Class II
  • Relative Humidity: Up to 93% non-condensing
Application/Usage:
  • Door
  • Window
  • Indoor
Compatibility:
  • B810 wireless receiver (compatible with RFUN-A only)
  • RFRC-OPT wireless receiver (compatible with RFUN only)
  • RFRC-OPT-CHI wireless receiver (compatible with RFUN-CHI only)
Certifications & Standards:
  • UL 365 - Police Station Connected Burglar Alarm Units and Systems
  • UL 609 - Local Burglar Alarm Units and Systems
  • UL 634 - Connectors and Switches for use with Burglar Alarm Systems
  • UL 636 - Holdup Alarm Units and Systems
  • UL 985 - Household Fire Warning System Units
  • UL 1023 - Household Burglar Alarm System Units
  • UL 1076 - Proprietary Burglar Alarm Units and Systems
  • UL 1610 - Central Station Burglar Alarm Units
  • FCC Part 15
  • Classified to ANSI/SIA CP01-2010
  • RCM [RFUN]
  • FCC Part 15 Security/Remote Control Transmitter 433.42 MHZ [433.42 MHZ]
  • CE
  • EN501 31
  • EN-ST-000158 RADION universal transmitter/RFUN
  • IC 1249A-RWSSFT [-A model numbers]
  • CCC 2013031901000109
  • ANATEL 2750-13-1855
Item Numbers
UNSPSC: 39121900
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Bosch RFUN-A Accessory is also known as BOS-RFUNA
