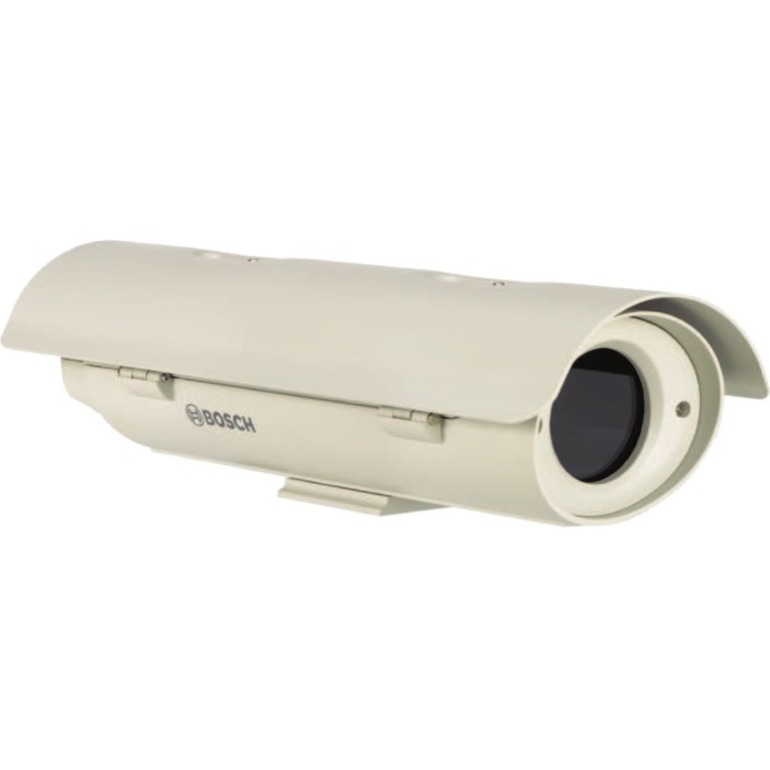

The UHO camera housings are smartly styled enclosures that enable you to use the DINION family of cameras in an outdoor environment or in areas where the cameras need to be protected. Models are available for use with 24 VAC, 120 VAC, and 230 VAC power supplies. Depending on the version, they can be used with 12 VDC, 24 VAC, and 230 VAC cameras.
Functions | Easy installation
The hinged, side-opening design allows easy installation of camera/lens combinations, and gives access to the controls even when the housing is mounted. Power and video cabling can be routed through feed-through fittings or external 4-pin power and BNC connectors at the rear of the housing. Feed- through entry holes are available in the base of some models for even better cable management. Mounting holes in the base can be used to install the housing on a wide range of pan/tilts, adjustable heads, and various camera mount brackets.
Temperature regulated
The aluminum-constructed housings have two heaters (one for window defrosting and one for the housing
interior), and an optional blower. The interior heater maintains the internal temperature of the housing in cold temperature conditions to extend the lower temperature limit to -40 °C (-40 °F). The permanently powered window defroster heater and the optional blower minimize fogging in high humidity locations. Sunshields are included on all models.
Secure
For increased security, the units come with tamper- resistant screws for the locking clasps to prevent unauthorized access.
Rugged
With a sleek design that meets IP66, IK10, and NEMA 4X standards, the housings are the ideal solution for protecting your video surveillance equipment from adverse elements.
