Bosch VJM-4016-US Products

The Bosch VJM-4016-US Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Bosch  -  16 CHL ENCODER, H.264 HIGH PROFILE, DUAL STREAMING@30 ips
  • Up to 16 number of channels to address small-to-mid range requirements
  • Maintain and increase your staff productivity by installing this surveillance solution
Read More

Need a different version? See all Bosch Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Bosch VJM-4016-US Products
Bosch VJM-4016-US Products
Bosch VJM-4016-US Products Bosch VJM-4016-US Products
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch VJM-4016-US Products Overview

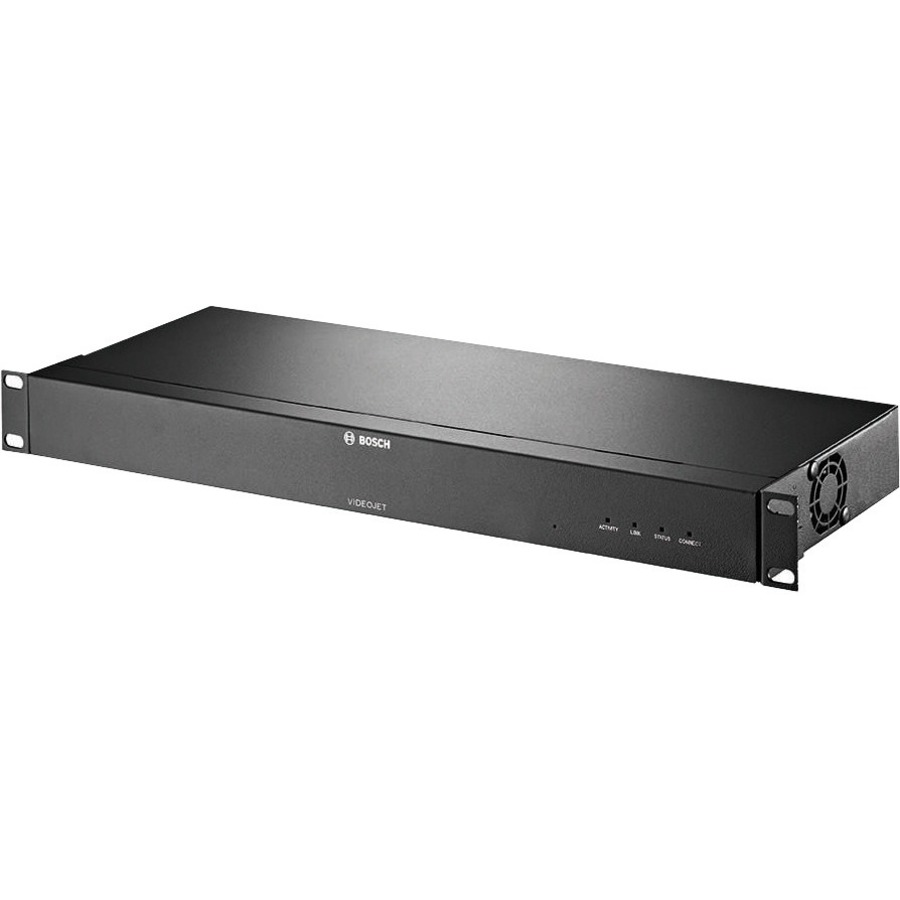

VIDEOJET multi 4000 from Bosch is a 16-channel CCTV video encoder that offers top-of-the-line Video-over-IP performance for CCTV today.

The VIDEOJET multi 4000 H.264 High Profile encoder delivers real-time H.264 compressed video over IPv4 and IPv6 networks. It provides Dual Streaming per camera with full frame rate at best quality. The unit supports PAL and NTSC sources and offers bidirectional audio communication in parallel to video.

View the video on a PC using Bosch's comprehensive video management system, with or without Bosch's IntuiKey keyboard. Alternatively, use a Web browser. Bosch VideoSDK provides the means to integrate the encoder with other video management systems.

With 16 channels in a rack-mountable 1HU form factor VIDEOJET multi 4000 offers the highest port density at this quality of video. Its 1 Gbps Ethernet interface allows to deliver IP video fast and with low delay.
Technical Information
Total Number of Channels:
16
Connectivity Technology:
Wired
System Components:
Video Encoder
Video
Video Formats:
  • H.264
  • Motion JPEG
Video Signal Format:
  • NTSC
  • PAL
Maximum Frame Rate:
30 fps
Audio
Audio Formats:
AAC-LC
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
Network (RJ-45):
Yes
Composite Video In:
Yes
Alarm Connector:
Yes
Total Number of Audio In Ports:
2
Total Number of Audio Out Ports:
1
Serial:
Yes
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Frequency:
  • 50 Hz
  • 60 Hz
Power Consumption:
23 W
Physical Characteristics
Product Color:
Traffic Black
Height:
1.7"
Width:
19"
Depth:
6.2"
Weight (Approximate):
3.70 lb
Miscellaneous
Package Contents:
  • VideoJet 4000 Video Encoder
  • 1 x Accessory Bag
  • 1 x Installation Manual
  • 1 x Power Cord with IEC Lock System
Certifications & Standards:
  • IEC 60950
  • IEC 62676-2
  • EN 50132-5-2
  • EN55022 ITE
  • EN55024 ITE
  • EN50130-4 Alarm systems
  • EN50121-4
  • EN61000-3-2
  • EN61000-3-3
  • FCC 47 CFR, Part 15 Subpart B Class B
  • UL
Country of Origin:
Portugal
TAA Compliant:
Yes
NDAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0800549758031
UPC: 800549758031
EAN: 0800549758031
UNSPSC: 46171621
