Protection Type:
- Surge
- Overload
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch WPTV244300UL Products Overview
The Multi-channel Power Supplies are designed to support multiple 24/28 VAC, 50/60 Hz camera installations. These models operate from a 120 VAC, 50/60 Hz or from a 230 VAC, 50 Hz power source.

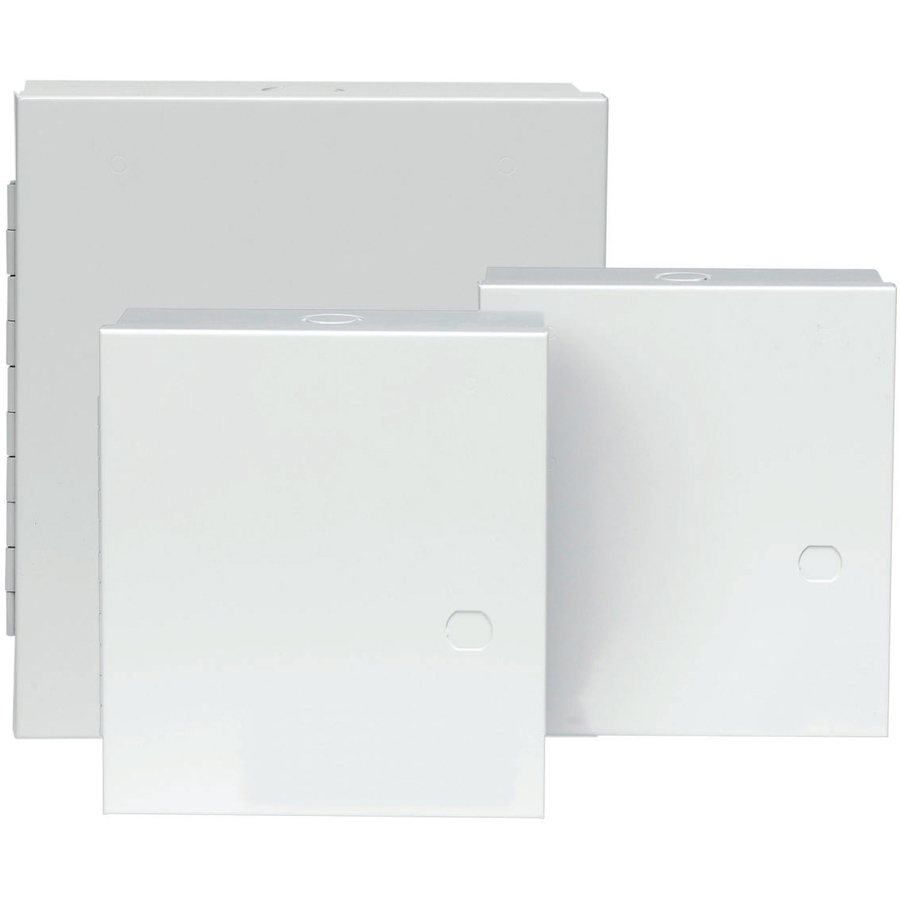

Housed in a steel cabinet, with knockouts included for ease of installation and cable management, all power supplies include channel overload protection and unit surge protection.
Each output can be selected as 24 or 28 VAC. The 28 VAC option is ideal for applications with cameras at the end of long cable runs where significant voltage drops can occur. The ability to select the voltage of each output individually provides a greatly enhanced flexibility to meet the requirements of any installation. These power supplies are ideal for both fixed camera use and for PTZ camera applications.
Housed in a steel cabinet, with knockouts included for ease of installation and cable management, all power supplies include channel overload protection and unit surge protection.
Each output can be selected as 24 or 28 VAC. The 28 VAC option is ideal for applications with cameras at the end of long cable runs where significant voltage drops can occur. The ability to select the voltage of each output individually provides a greatly enhanced flexibility to meet the requirements of any installation. These power supplies are ideal for both fixed camera use and for PTZ camera applications.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 28 V AC @ 10 A
- 24 V AC @ 12.5 A
Input Current:
2.7 A @ 110V
Output Power:
- 300 W
- 280 W
Interfaces/Ports
Plug/Connector:
On/Off Switch
Physical Characteristics
Form Factor:
Wall Mount
Height:
12"
Width:
7.8"
Depth:
4.5"
Weight (Approximate):
16.76 lb
Miscellaneous
Environmentally Friendly:
Yes
Country of Origin:
United States
Item Numbers
GTIN:
0800549571203, 5311090223336
UPC:
800549571203
EAN:
0800549571203, 5311090223336
UNSPSC:
39121004
