Recording Formats:
Full HD
HD Recording:
Yes
CBC Parts Accessory Model Overview
Products and parts from CBC.
CBC HSS-H37-HD Security Camera Overview
Height strip cameras are designed to supplement standard surveillance cameras by capturing a person's facial image and height upon exiting a store. The HSW-H37 includes a 1080p AHD camera with OSD menu control. It is housed in a low profile enclosure with discrete 1/8" viewing slots. The camera can be adjusted a full 90 degrees to the left and right of center, making it ideal for double doors requiring an angled view. Up to 2 additional cameras can be installed for multiple viewing angles.
- 3.7mm wide-angle lens
- Redesigned for easy installation
- Fits most standard door frames
- Durable aluminum construction

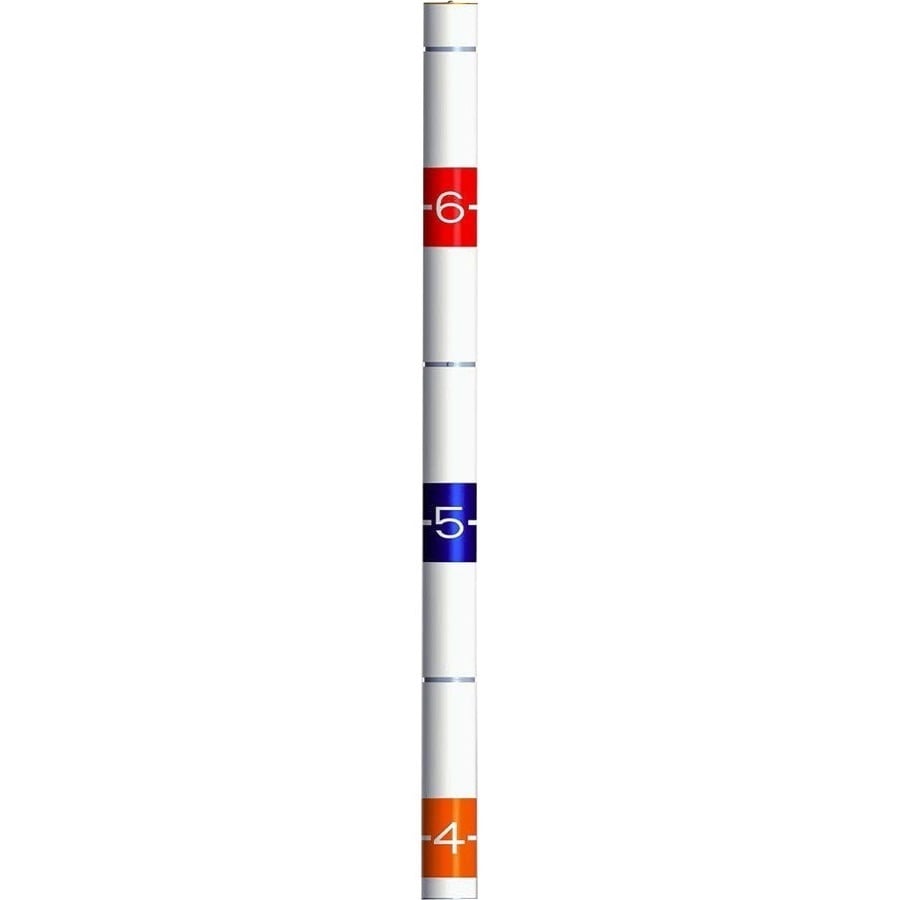

- Highly visible color-coded height levels
- Curved surface with 180º camera adjustment
- Wrap-around labels visible from the side
- 12VDC
- 1 onboard camera included with the base model
- Also available in black (HSB-H37) and silver (HSS-H37)
Technical Information
Display & Graphics
Image Sensor Type:
Exview HAD CCD II
Color Supported:
Color
Field of View:
74º
Effective Camera Resolution:
2 Megapixel
Video
Maximum Video Resolution:
1920 x 1080
Horizontal Resolution:
700 TVL
Lens
Lens Type:
Fixed
Maximum Focal Length:
3.70 mm
Exposure
Shortest Shutter Speed:
1/100000 Second
Longest Shutter Speed:
1/60 Second
Network & Communication
Connectivity Technology:
Wired
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Mount Type:
Wall Mount
Form Factor:
Height Strip
Product Color:
Silver
Height:
34.1"
Width:
1.7"
Depth:
1.4"
Weight (Approximate):
2 lb
Environmental Conditions
Minimum Operating Temperature:
14°F (-10°C)
Maximum Operating Temperature:
122°F (50°C)
Operating Humidity:
90%
Miscellaneous
Features:
- Built-in OSD Function
- Auto Gain Control
- Day/Night
- White Balance
Indoor/Outdoor:
Indoor
Item Numbers
UNSPSC:
46171610
