CBC V2528-MPY CCTV Camera Lens

CBC - 1.1" 25mm f2.8, 12.0 megapixel Ultra low Distortion Lens

A high-performance lens for professional photographers
Designed to be used with surveillance camera

Need a different version? See all CBC Parts Accessories

Chat Now for Qty Discount

Add to Quote

$610.69

Overview

CBC Parts Accessory Model Overview

Products and parts from CBC.

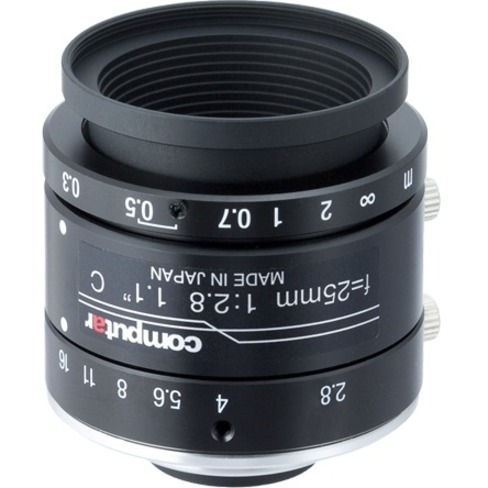

CBC V2528-MPY CCTV Camera Lens Overview

The MPY Series supports a 1.1" sensor format at 12 Megapixel resolution in a C-mount lens. The MPY Series combines high-performance optics with a variety of common focal lengths for maximum application flexibility.

For Machine Vision and ITS Applications
25mm Fixed Lens
12 Megapixel
C Mount
Smallest 1.1" format lens for > 10MP Lens in the industry
F 2.8
3.45µm pixel size
Lightweight
Vibration resistance up to 5G
Image circle Ø17.6
Also Available in 8, 12, 16, 35, and 50mm focal lengths

Detailed Specs

Technical Information

Lens Type:

Fixed

Iris Type:

Manual

Maximum Focal Length:

25 mm

Maximum Aperture:

f/2.8

Lens Mount Type:

C-mount

Autofocus:

Field of View:

D: 38.7°; H: 31.7°; V: 23.5°

Physical Characteristics

Diameter:

1.6"

Weight (Approximate):

2.77 oz

Miscellaneous

Application/Usage:

Surveillance Camera

Sensor Size Compatibility:

1.1"

Warranty

Limited Warranty:

3 Year

Item Numbers

UNSPSC: 45121603
