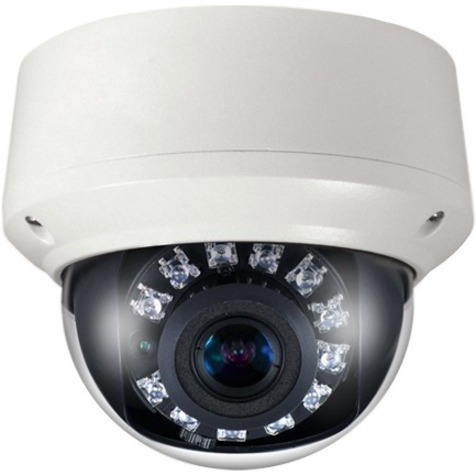

CBC Z8-VD2V-2 Security Camera

CBC GANZ GENSTAR AHD - Security Cameras, CBC GANZ GENSTAR AHD, 1080p, 2.8-12mm, IR, dWDR, IP67, 12VDC/24VAC, 4-in-1

1/2.8" SONY Progressive Scan CMOS
2.8-12mm Lens
Full HD 1080P @ 30fps
4-in-one AHD/TVI/CVI/CVB
True Day/Night
984' (300m) Video Transmission
IR Range 98'
3D DNR, WDR, ICR, BLC
IP67, IK10

Need a different version? See all CBC Parts Accessories

Chat Now for Qty Discount

Add to Quote

$154.34

Overview

CBC Parts Accessory Model Overview

Products and parts from CBC.

Detailed Specs

Technical Information

Recording Formats:

HD Recording:

Yes

Night Vision:

Yes

Night Vision Distance:

98 ft

Night Vision Type:

Infrared

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Color
Monochrome

Field of View:

H: 110° ~ 39.3°, V:60.5° ~ 23.1°

Video

Video Formats:

CVBS (Analog)

Maximum Video Resolution:

1920 x 1080

Maximum Frame Rate:

30 fps

Video Signal Format:

NTSC
PAL

Analog Video Signal Format:

CVBS
AHD
TVI
CVI

Lens

Lens Type:

Fixed

Minimum Focal Length:

2.80 mm

Maximum Focal Length:

12 mm

Lens Included:

Yes

Maximum Aperture:

f/1.2

Optical Zoom:

4.3x

Exposure

Shortest Shutter Speed:

1/10000 Second

Longest Shutter Speed:

1/30 Second

Network & Communication

Connectivity Technology:

Wired

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Mount Type:

Pendant Mount
Wall Mount

Form Factor:

Dome

Diameter:

5.1"

Weight (Approximate):

1.50 lb

Environmental Conditions

Minimum Operating Temperature:

14°F (-10°C)

Maximum Operating Temperature:

131°F (55°C)

Operating Humidity:

85%

Miscellaneous

Features:

3D Digital Noise Reduction
Wide Dynamic Range
Built-in Mechanical ICR
Back Light Compensation (BLC)
Day/Night
Digital Noise Reduction
Built-in IR LED
Built-in OSD Function
Alarm Triggering
Defog
Highlight Compensation (HLC)
Privacy Masking
Motion Detection

Indoor/Outdoor:

Outdoor

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP67

Warranty

Limited Warranty:

36 Month

Item Numbers

UNSPSC: 46171610
