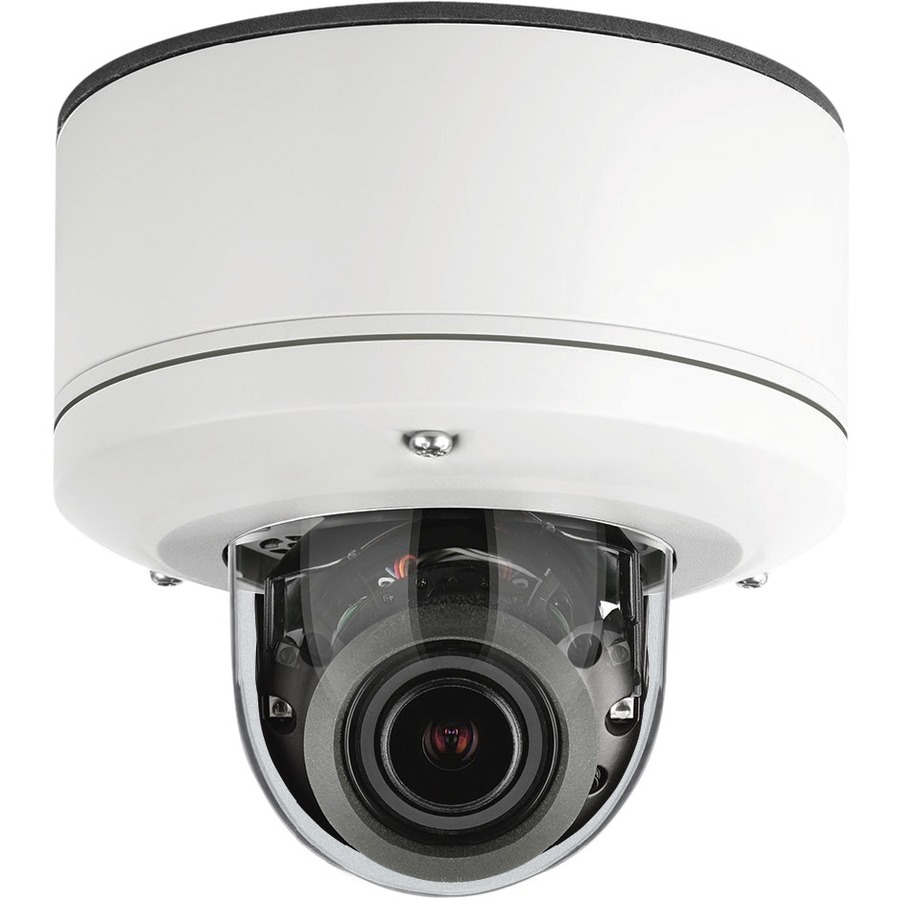

CBC ZN1A-D4DTMZ56U Security Camera

CBC PIXELPRO - Security Cameras, CBC PIXELPRO, 1080p, 2.8-12mm, MFZ, POE/12VDC, T-WDR, IR, Low light, microSD card slot, IP67

Network camera - Helps achieve high-quality video results
Up to 2592 x 1944 resolution for surveillance in real-time
Revolutionary image sensor - Joins multiple exposed patterns together and advanced planarization for minimized fluctuation
12 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
f/1.4 maximum aperture for reliable, detailed, and sharp output with added dependability
4.3x optical zoom for bringing the subject closer for maximum surveillance efficiency
Up to 80 ft of night vision
Infrared night vision type efficiently detects infrared waves that are invisible to the naked eye
Varifocal lens type for sharp, detailed focus to ensure maximum surveillance usability
Ceiling Mount mount type allows convenient, easy usage with maximum efficiency

Need a different version? See all CBC Parts Accessories

Chat Now for Qty Discount

Add to Quote

$538.15

Overview

CBC Parts Accessory Model Overview

Products and parts from CBC.

Detailed Specs

Technical Information

HD Recording:

Yes

Night Vision:

Yes

Night Vision Distance:

80 ft

Night Vision Type:

Infrared

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

Exmor CMOS

Color Supported:

Color

Field of View:

Horizontal: Approx. 96° (Wide) to 35° (Tele)

Effective Camera Resolution:

2.1 Megapixel

Video

Video Formats:

H.265
H.264M
H.264B
H.264H
MJPEG
H.265M
H.265B
H.265H

Maximum Video Resolution:

2592 x 1944

Maximum Frame Rate:

30 fps

Lens

Lens Type:

Varifocal

Minimum Focal Length:

2.80 mm

Maximum Focal Length:

12 mm

Lens Included:

Yes

Maximum Aperture:

f/1.4

Optical Zoom:

4.3x

Exposure

Shortest Shutter Speed:

1/32000 Second

Longest Shutter Speed:

1/30 Second

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Storage

Storage Type:

Memory Card

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Mount Type:

Ceiling Mount
Wall Mount

Form Factor:

Dome

Durability:

Weather Resistant

Height:

4.9"

Diameter:

5.5"

Weight (Approximate):

2.80 lb

Environmental Conditions

Minimum Operating Temperature:

-40°F (-40°C)

Maximum Operating Temperature:

122°F (50°C)

Operating Humidity:

90%

Miscellaneous

Features:

Auto Gain Control
Day/Night
Wide Dynamic Range
3D Digital Noise Reduction
Audio Compression

Ingress Protection Rating:

IP67

Warranty

Limited Warranty:

36 Month

Item Numbers

UNSPSC: 46171610
